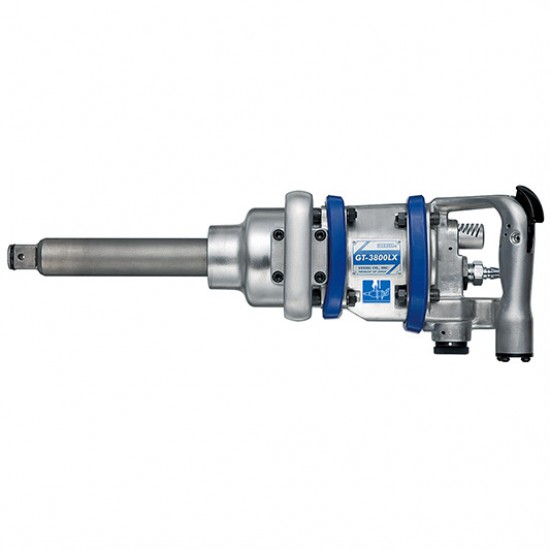

GT-3800LX-8

1.0" Drive Air Impact Wrench, 8" Anvil, Light F-Hammer, 45° D-Handle, 1186 lb/ft Torque, 1-1/2" Max Bolt Capacity, 4100 RPM

The GT-3800LX-8 is a heavy-duty 1.0” square drive air impact wrench with a durable 8.0” extended anvil. This easy to use impact wrench is ideal for fastening and removing large nuts and bolts when changing out tires on large size trucks or earth moving equipment. It has an ergonomic 45-degree tilted D-handle to allow for a more comfortable holding position when changing out tires. It aligns the air tool’s center of gravity (with socket and air hose attached) to the operator’s center of gravity (waist level) which makes it much easier to handle and results in better work efficiency. Also, since the air hose is lined up with the air compressor, it helps prevent any danger from the air hose becoming tangled.

Overall, it’s lightweight and compact, has a powerful torque range of 361-1186 lb/ft (max torque 1536.7 lb/ft), a max bolt capacity of 1-1/2”, and equipped with a powerful F-hammer mechanism for stable high-torque fastening.  Other specifications include: 4100 RPM, anvil retainer ring, 3-adjust dials, 87psi air pressure, ½” air hose inner diameter, a 360-degree free-turn silencer / rear exhaust, 20.5” overall length, D-handle type, and weighs 21.6 lbs.

PRODUCT SPECIFICATIONS
Brand: VESSEL
Part Number GT-3800LX-8
Drive Size: 1.0" (25.4mm)
Anvil / Retainer Type 8.0" Extended Anvil Thru-Hole with Retainer Ring
Impact Type: F-Hammer
Handle Type: D-Handle
Bolt Capacity Dia.: 1-1/2" (39mm)
Torque Range: 361.6~1186.0 lb/ft (490~1607 Nm)
Maximum Torque: 1536.74 lb/ft (2082.3 Nm)
Torque Adjustment: 3-Stage Adjust Dial
No Load Speed: 4100 RPM
Required Air Pressure 87psi (0.6 Mpa)
Air Consumption: 24.7 CFM (0.70 m3/min)
Hose Coupling: Rc 1/2
Air Hose Inner Dia.: 1/2" (12.7mm)
Exhaust: Rear
Overall Length: 20.5" (520.0mm)
Weight: 21.6 lbs (9.8kg)
Country of Origin Japan
