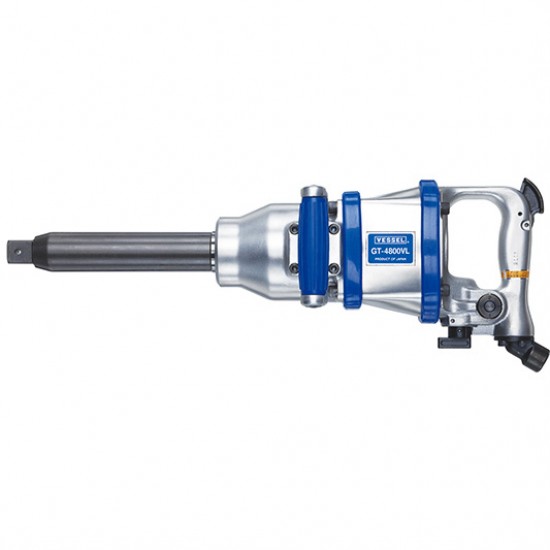

GT-4800VL

1.0" Drive Air Impact Wrench, 9" Anvil, Light V-Hammer, D-Handle, 1483.4 lb/ft Torque, 1-7/8" Max Bolt Capacity, 3200 RPM

The GT-4800VL is a heavy-duty industrial 1.0” square drive air impact wrench with a rugged 9.0” extended anvil.  This D-handle type unit is ideal for general automotive or machinery applications It’s compact and lightweight, has a torque range of 253.1-1483.4 lb/ft (max torque 1876.1 lb/ft), a max bolt capacity of 1-7/8”, and equipped with a powerful V-hammer mechanism for quick high-torque fastening.  Other specifications include:  3200 RPM, anvil pin-lock, 4-adjust dial, 87psi air pressure, 1/2” air hose inner diameter, D-handle type, 22.0” overall length, and weighs 28.2 lbs.

PRODUCT SPECIFICATIONS
Brand: VESSEL
Part Number GT-4800VL
Drive Size: 1.0" (25.4mm)
Anvil / Retainer Type 9.0" Extended Anvil Thru-Hole with Pin-Lock
Impact Type: V-Hammer
Handle Type: D-Handle
Bolt Capacity Dia.: 1-7/8" (48mm)
Torque Range: 253.1~1483.4 lb/ft (343~2010 Nm)
Maximum Torque: 1876.07 lb/ft (2542.1 Nm)
Torque Adjustment: 4-Stage Adjust Dial
No Load Speed: 3200 RPM
Required Air Pressure 87psi (0.6 Mpa)
Air Consumption: 35.3 CFM (1.00 m3/min)
Hose Coupling: Rc 1/2
Air Hose: Inner Dia. 1/2" (12.7mm)
Exhaust: Front
Overall Length: 22.0" (559.0mm)
Weight: 28.2 lbs (12.8kg)
Country of Origin Japan
