G-5E STAT-CLEAN Air-Powered Ionizing Gun
Power cord is not needed! Experience the new era of high-performance static elimination and micro-dust removal driven entirely by compressed air. No cumbersome power packs, batteries, or trailing high-voltage cables.
Contact For Product Inquiry
Product Highlights
Cordless Freedom
The internal air-motor unit translates compressed air velocity seamlessly into electricity. Eliminates cable snagging, sudden failure from cable disconnections, and limits workspace footprint.
Ultra Powerful Force
Delivers high-impact air velocity to lift micro-particles and neutralise charges simultaneously, functioning perfectly under input pressures between 0.2 to 0.7 MPa.

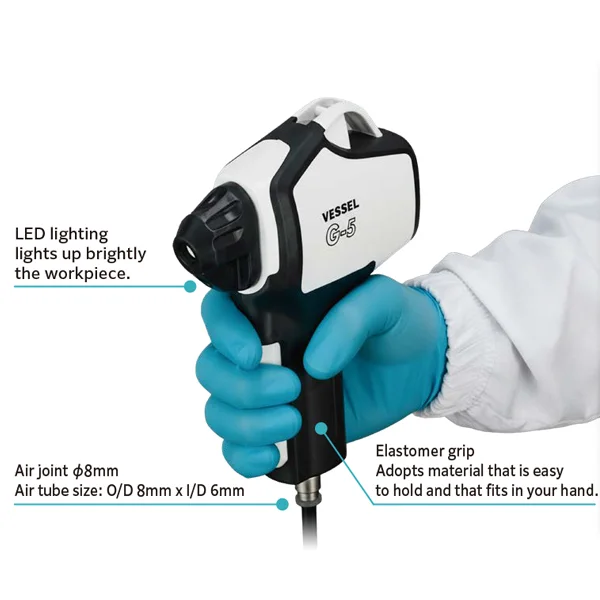

Ergonomic Design
Naturally angled downwards at the nozzle head so you do not need to hyper-extend or strain your wrist. Fully integrated with an elastomer form-fitting grip and light-weight profile.
Simplified Upkeep
Equipped with a robust rubber nozzle guard that stops work-piece scratches. Uses a single internal tungsten needle electrode layout designed to be quickly unscrewed and wiped clean.
Effective Static Discharging Envelope
Our balanced high-frequency AC corona discharge technique guarantees uniform decay envelopes across expansive surface fields without needing a high voltage tuning box.
-
Rapid Discharge Times: Drops from ±1000V down to ±100V in 1 second or less at a distance of 150mm.
Excellent Ion Balance: Stays within ±20V at stable factory standard operation air currents.
Spacious Flexibility: Maximize target distance up to 600mm just by widening out the supply line.
Triple-Threat Diagnostics Panel
Real-time on-board operating logic ensures that you don't compromise manufacturing output safety. Visible back-casing smart-LEDs display critical tool integrity instantly:
Technical Specifications
| Parameter | Product Value Details |
|---|---|
| Model Identifier | G-5 / G-5E Series |
| Ionization Method | AC Corona Discharge (8kVAC p-p / 32kHz frequency) |
| Operating Pressure Range | 0.2 to 0.7 MPa (Rated performance sweet spot at 0.5MPa) |
| Air Velocity Consumption | 422 liters per minute (at 0.5 MPa input stream) |
| Structure Weight | Approx. 365 grams (Compact 0.8lbs handling profile) |
| Safety Interlocks | High-voltage short-circuit cutout, Overload protection, High-temperature auto-stop |
| Composition Materials | Flame-retardant Polycarbonate & ABS frame; Tungsten emitter needle |
Engineered for Demanding Industrial Sectors
To view a detailed walkthrough and live demonstration of the air-powered static neutralization feature, you can watch the Vessel Air Powered Ionizing Gun Overview. This video demonstrates how the gun functions exclusively using compressed air lines without standard electrical cords, showcasing its performance on industrial workpieces.
