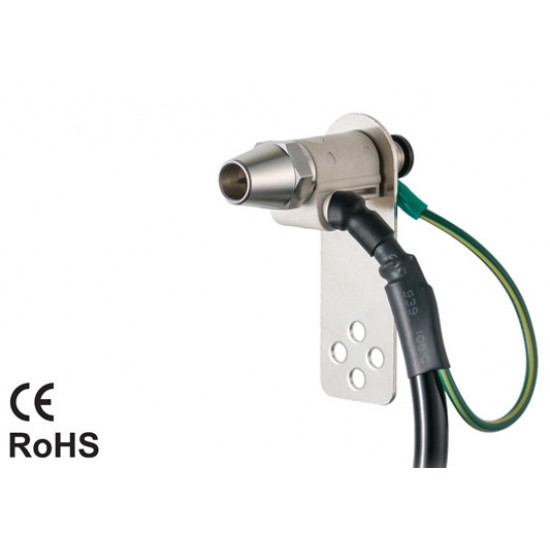

HPN-1

High Power Nozzle Ionizer with Shielded Cable and Mounting Hardware
(Use with GP-1 and AD24-GP)

Low-Wear Tital Electrode Needle Enhances Ionizing Performance
High-Voltage Shielded Cable Reduces Interference From Electrical Noise
Titanium Electrode Needle (Discharge Electrode)
Silicon Shielded Cable for High Voltage
Ion Balance Circuit
(High Voltage Power Supply Unit GP-1 4kV)
Safety Circuit / Anomaly Detection Circuit
(High Voltage Power Supply Unit GP-1 4kV)
The HPN-1 high-power ionizing nozzle is ideal for removing static from highly charged items, and is a perfect solution for industries such as bag making, film packing, injection molding, robotic conveyors and pick-ups, and for food container manufacturing.

Overall, this tool is very user-friendly , has easy maintenance, and holds the CE and RoHS markings.

Specifications:
Model Number (EDP #): HPN-1 (623043)
Ionizing Method / Applied Voltage: Piezoelectric high-frequency AC corona discharge / AC 4.5kV
Rated Input Voltage: 100~240V AC (50~60Hz) 0.4V
Power Supply and Current Consumption: DC 24V  ±5% / 100mA (typ)
Ion Balance: Within ±10V (43.5psi/0.3MPa at 6"/150mm) [measured values]
Decay Time: 0.8 sec or less (43.5psi/0.3MPa at 11.8"/300mm) [measured values]
Air Pressure / Operating Fluid: 14.5psi to 87psi (0.1-0.6MPa), Clean Dry Air
Operating Range: 1.97" to 11.81" (50mm to 300mm) / Installation: Indoor, non-hazardous area
Dimensions (LxHxD): 5.8" x 6.2" x 1.7" (148 x 157 x 44mm)
Estimated Weight: 0.57 lbs (0.26kgs / 260g)
Air Supply Hose Diameter: Ø6mm Tube Fitting
Airflow: 7.06 ft3/min @ 43.5psi (200 l/min @ 0.3MPa)
Noise Level: 94dBA (43.5psi / 0.3MPa)
Ozone Production: 0.05ppm or less (measured at 1.97" / 50mm)
Working Temp Range: 41-104°F (5 - 40°C)
Working Humidity Range: 35~65% RH (non-condensing, non-freezing)
Operating / Warning Indicators: Power or Good Operating Condition (Blue LED) / High Voltage Alarm (Red LED)
Materials: Casing: Fire retardant polycarbonate and elastomer, Bail Hook: SUS, Electrode Needle: Tungsten
Approximate Cable Length(s): DC output cable 8.2ft (2.5m), AC input cable 5.9ft (1.8m)
Accessories / Optional Items: (AD24-ITC-E) 6-ft robotic AC adapter, (G7-DR) electrode needle removal tool, (G7-SC) speed controller, (G7-F) micro filter, (N-2TN) air tube nozzle
Includes: Ion Gun with Standard Nozzle, Power Supply, User's Manual
Markings: CE, RoHS
Country of Origin: Japan
