JNC6-02W

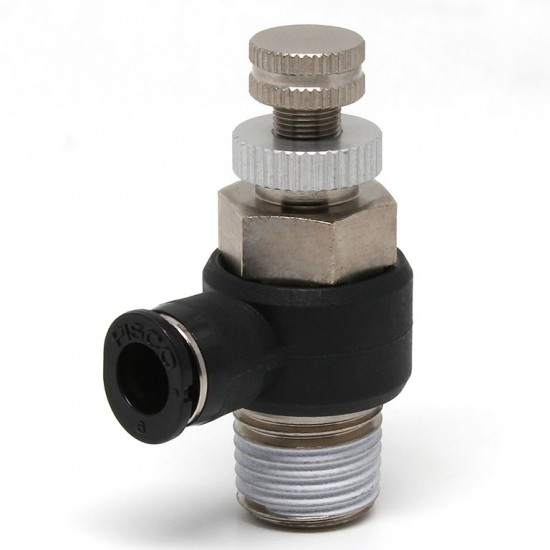

The image is JNC6-02. The actual color of resin body and release ring is light-gray.

Throttle valve controls the operation speed of a pneumatic device and the transmission of air pressure signals.
The flow rate can be adjusted while the air is flowing.

Model type: Elbow
Weight: 37.0g
Shipping unit: 1pc.

Resin: PBT
Metal: Brass with electroless nickel plating
Seal Rubber: NBR

Port size
Tube dia.: φ6mm
Thread size: R1/4

Specifications
Fluid medium: Air
Max. operating pressure: 0.9MPa
Max. vacuum: -100kPa
Operating temp. range: 0～60℃(No freezing)

Advantages
Throttle valve controls the operation speed of a pneumatic device and the transmission of air pressure signals.
The flow rate can be adjusted while the air is flowing.
The lead-out directions are free.
For Free type, the fitting part and resin body rotate.
