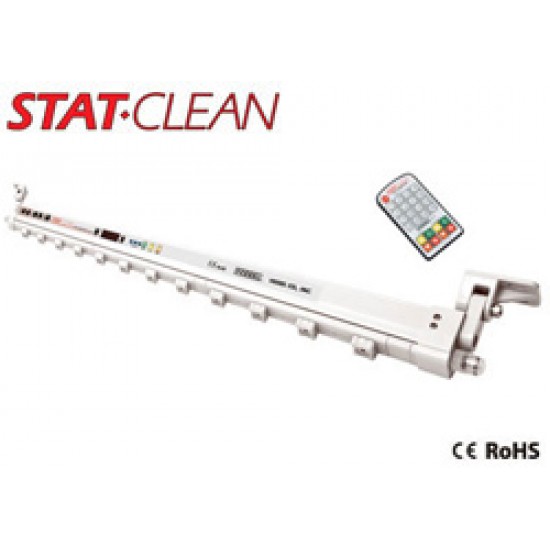

C-60 (MLX)

Compact AC Pulse Ion Bar with Air Assist

Key Features
Pulse AC-type corona discharge method
Accurate ion balance (within ± 30V)
Newly designed super-fast ionizing air discharge port
Terminals grouped on one side enables a daisy chain connection (up to 4 units)
Air purge function stops particles from adhering to electrode needle
Auto ion balance mode setting (target distance: 2 to 4”)
Adjustable duty ratio setting (duration time of positive/negative ions)
Multiple frequency settings (0.1 to 50Hz)
Address setting to identify each ion bar (1-16)
Compact and Lightweight for Easy Installation
High voltage abnormality alarm
Electrode tip cleaning alarm output
Safe 24VDC low voltage circuit
Card type remote controller (except models C-40 and C-60)
Easy maintenance – one touch electrode needle socket removal

VESSEL’s C-Series is a bar type ionizer which uses compressed air (or nitrogen) to quickly eliminate static electricity from an object. It can be used to prevent electronic parts from being charged and covered with dust. Power supply sold separately.
