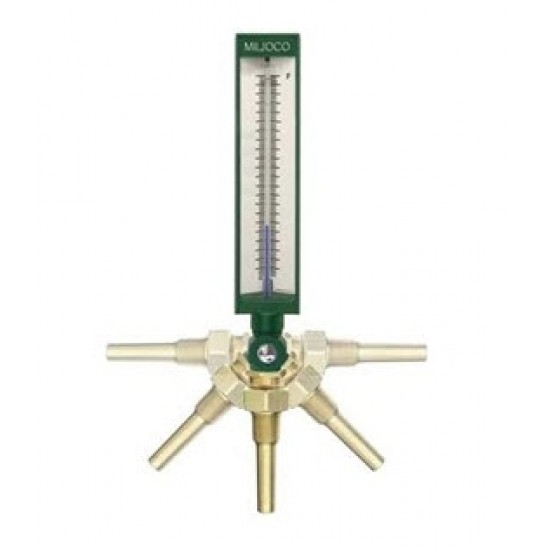

SX93535

9 Scale Size, 0 to 120 degrees F Range. Miljoco liquid-in-glass thermometers are designed for commercial construction & industrial applications such as piping & air ducts. This instrument represents the accepted worldwide engineering standard for industrial thermometers with die cast aluminum case construction for rugged durability. The non-toxic, organic spirit-filled tube provides an accurate and quick response while maintaining environmental safety.


TECHNICAL SPECS

CASE: Precision die cast aluminum, green powder coat finish.
LENS: Acrylic to 300 degrees F, glass above 300 degrees F.
SCALE: Aluminum with white finish and black markings, v-shaped for optimum readability.
TUBE: Non-toxic, blue organic-filled glass tube with magnifying lens front. Bore over the spirit column is filled with nitrogen and the tube is shock mounted to reduce the risk of separation during shipment and use.
ADJUSTABLE FITTING: Finished to match the case and locked in place with a screw. Provides 180 degrees adjustment in vertical plane and 360 degrees adjustment in horizontal plane.
CONNECTION: 1-1/4-18 UNF threaded brass coupling nut.
STEM: Aluminum, tapered to fit standard industrial thermowells, packed with heat transfer paste to provide maximum temperature response.
ACCURACY: 1 scale division.
AMBIENT TEMPERATURE: -40 to 140 degrees F (-40 to 60 degrees C).


Miljoco SX93535
