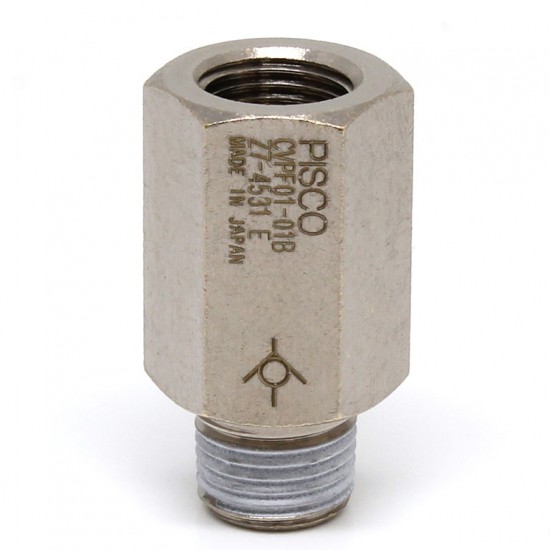

CVPFN1-N1B

Check Valve permits the air flow in one direction but checks the flow in the opposite direction, thus keeping the output pressure at a constant level.

Port size: Tube dia. - 1/8-27NPT; Female thread size - 1/8-27NPT

Specifications:
Fluid medium: Air
Max. operating pressure: 0.9MPa
Max. vacuum: -100kPa
Min. opening pressure(*): Less than 0.01MPa
Min. opening differential pressure: 0.04MPa
Operating temp. range: 0～60℃(No freezing)

Advantages
Check Valve permits the air flow in one direction but checks the flow in the opposite direction, thus keeping the output pressure at a constant level.
Usable in vacuum retention state and low-pressure piping.
Low-cost and lightweight resin type.
