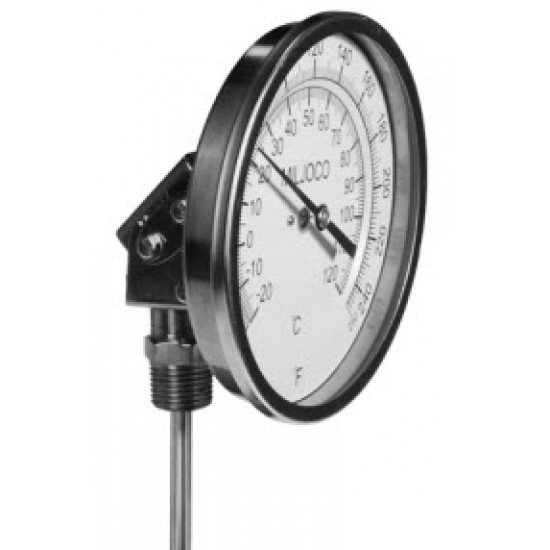

B5099A65
5 Dial Size, 150 to 750 degrees F / 50 to 400 degrees C Range. Miljoco adjustable angle bimetal thermometers are a favorite for their versatility. The construction industry values this instrument, where on-the-job piping requires reading the instrument from a variety of angles. The connection can be rotated 360 degrees and the face can be angled 180 degrees for the user's convenience. These instruments are designed to withstand vibration and other rugged abuse. The hermetically-sealed, stainless steel case prevents moisture from entering into the instrument and fogging the lens, thus allowing the operator to obtain clear, accurate readings.
TECHNICAL SPECS
CASE & RING: Hermetically sealed 300 series stainless steel.
ADJUSTABLE BRACKET: 300 series stainless steel.
LENS: Double strength glass standard, with polycarbonate (250 degrees F maximum range) optional.
DIAL: Anti-parallax, aluminum with white finish and black markings.
POINTER: Black.
RECALIBRATOR: External recalibrator on rear of case.
CONNECTION: 300 series stainless steel, 1/2 NPT.
STEM: 300 series stainless steel, _ 0.250.
ACCURACY: 1% full range (ASME B40.3 Grade A).
AMBIENT TEMPERATURE: -40 to 250 degrees F (-40 to 120 degrees C).
Miljoco B5099A65
TECHNICAL SPECS
CASE & RING: Hermetically sealed 300 series stainless steel.
ADJUSTABLE BRACKET: 300 series stainless steel.
LENS: Double strength glass standard, with polycarbonate (250 degrees F maximum range) optional.
DIAL: Anti-parallax, aluminum with white finish and black markings.
POINTER: Black.
RECALIBRATOR: External recalibrator on rear of case.
CONNECTION: 300 series stainless steel, 1/2 NPT.
STEM: 300 series stainless steel, _ 0.250.
ACCURACY: 1% full range (ASME B40.3 Grade A).
AMBIENT TEMPERATURE: -40 to 250 degrees F (-40 to 120 degrees C).
Miljoco B5099A65
$113.33
Ex Tax: $113.33
- Stock:
- Manufacturer: Miljoco
- Model: p47013
- SKU: B5099A65
