B509943

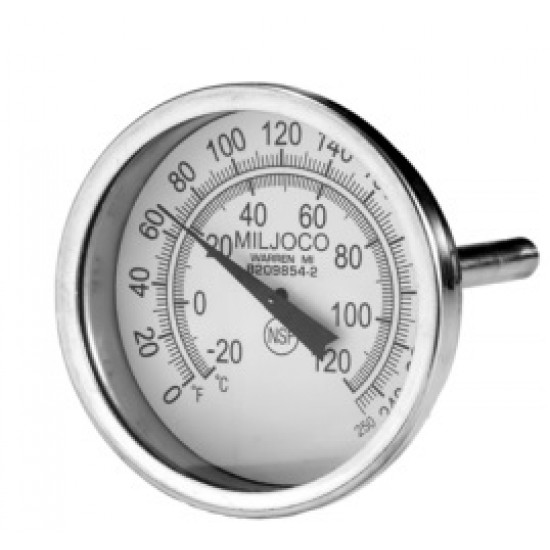

5 Dial Size, 25 to 125 degrees F / -5 to 50 degrees C Range. Miljoco rear connected bimetal thermometers are economic and ideal for applications that can accept a fixed back connection. These instruments are provided with an external recalibrator on the rear of the case, for easy temperature adjustment. The hermetically-sealed, stainless steel case prevents moisture from entering into the instrument and fogging the lens, thus allowing the operator to obtain clear, accurate readings.


TECHNICAL SPECS

CASE & RING: Hermetically sealed 300 series stainless steel.
LENS: Double strength glass standard, with polycarbonate (250 degrees F maximum range) optional.
DIAL: Aluminum with white finish and black markings.
POINTER: Black.
RECALIBRATOR: Furnished standard with external recalibrator on rear of case.
CONNECTION: 300 series stainless steel, 1/2 NPT.
STEM: 300 series stainless steel, _ 0.250.
ACCURACY: 1% full range (ASME B40.3 Grade A).
AMBIENT TEMPERATURE: -40 to 250 degrees F (-40 to 120 degrees C).


Miljoco B509943
