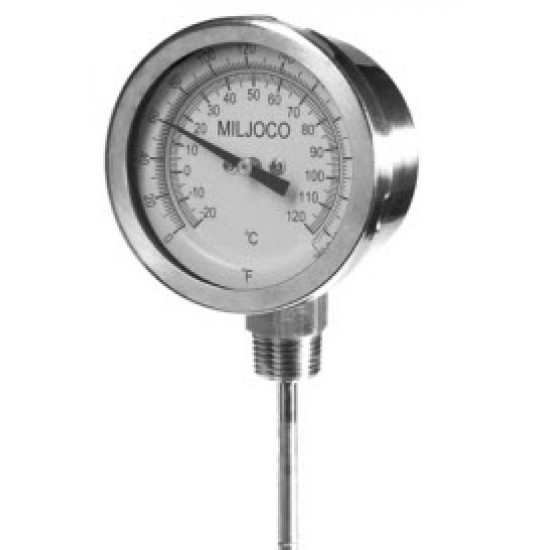

B3099L39
3 Dial Size, -40 to 160 degrees F / -40 to 70 degrees C Range. Miljoco lower connected bimetal thermometers are ideal for applications requiring a compact dial and fixed lower connection. These tamper-proof instruments are an excellent choice when an external recalibrator or pointer adjustment are not required. The hermetically-sealed, stainless steel case prevents moisture from entering into the instrument and fogging the lens, thus allowing the operator to obtain clear, accurate readings.
TECHNICAL SPECS
CASE & RING: Hermetically sealed 300 series stainless steel.
LENS: Double strength glass standard, with polycarbonate (250 degrees F maximum range) optional.
DIAL: Anti-parallax, aluminum with white finish and black markings.
POINTER: Black.
RECALIBRATOR: None.
CONNECTION: 300 series stainless steel, 1/2 NPT.
STEM: 300 series stainless steel, _ 0.250.
ACCURACY: 1% full range (ASME B40.3 Grade A).
AMBIENT TEMPERATURE: -40 to 250 degrees F (-40 to 120 degrees C).
Miljoco B3099L39
TECHNICAL SPECS
CASE & RING: Hermetically sealed 300 series stainless steel.
LENS: Double strength glass standard, with polycarbonate (250 degrees F maximum range) optional.
DIAL: Anti-parallax, aluminum with white finish and black markings.
POINTER: Black.
RECALIBRATOR: None.
CONNECTION: 300 series stainless steel, 1/2 NPT.
STEM: 300 series stainless steel, _ 0.250.
ACCURACY: 1% full range (ASME B40.3 Grade A).
AMBIENT TEMPERATURE: -40 to 250 degrees F (-40 to 120 degrees C).
Miljoco B3099L39
$94.61
Ex Tax: $94.61
- Stock:
- Manufacturer: Miljoco
- Model: p47029
- SKU: B3099L39
