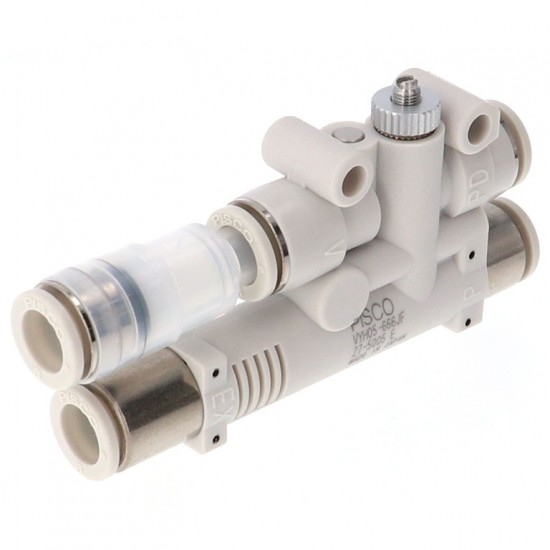

VYH05-666JF

Integrated ejector and vacuum breaking function.

Applicable size
vacuum port tube size - φ6mm
Air supply port tube size - φ6mm
Break air supply port tube size - φ6mm
exhaust port tube size - φ6mm

Specification
Fluid used - Air (JIS B 8392-1: "Class 1.2.1 to 2.4.3" compliant)
Working pressure range - 0.3～0.7MPa
Rated supply pressure - 0.5MPa
Operating temperature - 5 to 50℃ (no freezing)
Refueling - Unnecessary

Vacuum characteristics
Ultimate vacuum - -90kPa
Suction flow rate - 7L/min(ANR)
consumption flow rate - 11.5L/min(ANR)

Features
Integrated ejector and vacuum breaking function. It is possible to switch between vacuum generation and destruction air by turning the air supply to the ejector ON/OFF.
Added a function to release breaking air to the ejector.
Vacuum breakage is more reliable than conventional single-piece ejectors.
Significantly lower cost than vacuum generators using regular solenoid valves.
Because it is small and lightweight, it can be used at the end of vacuum piping.
Equipped with a shutoff valve to speed up the adsorption/destruction cycle.
