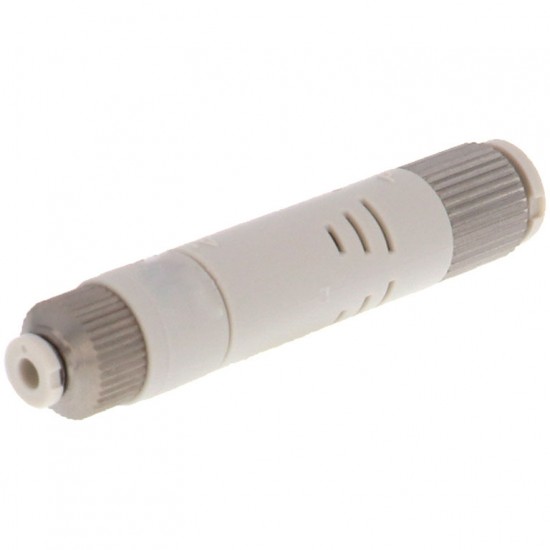

VUMH05-1804

Extremely small. Conversion from compressed air to vacuum is possible in one line.

Applicable size
vacuum port tube size - φ1.8mm
Air supply port thread size - φ4mm

Specification
Fluid used - air
Working pressure range - 0.15～0.7MPa
Rated supply pressure - 0.5MPa
Operating temperature - 0 to 60℃ (no freezing)

Vacuum characteristics
Ultimate vacuum - -90kPa
Suction flow rate - 7L/min(ANR)
consumption flow rate - 11.5L/min(ANR)

Features
Extremely small. Conversion from compressed air to vacuum is possible in one line.
Necessary items for transporting workpieces. By converting compressed air into vacuum and combining it with a vacuum pad, it can be used to transport workpieces.
Responds to the need for low flow consumption.
Easy to install and remove using the dedicated fixing holder (VUK04 (sold separately)).- 0 to 60℃ (no freezing)
