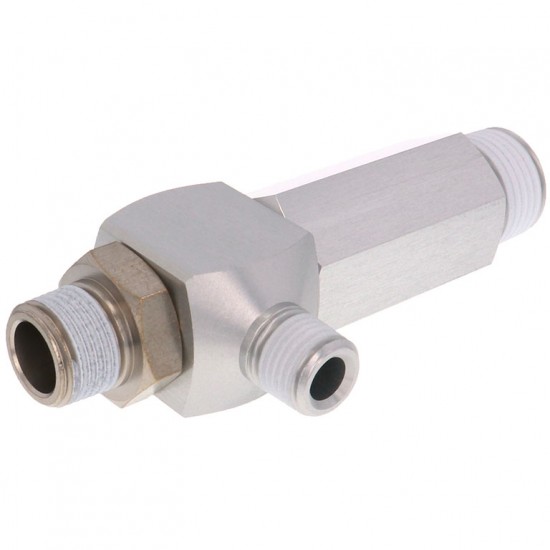

VRL300-N3N2N4

Transports small, irregularly shaped workpieces such as granules, powder, and fibers.

Applicable size
vacuum port thread size - 3/8-18NPT
Air supply port tube size - 1/4-18NPT
Exhaust port thread size - 1/2-14NPT

Specification
Fluid used - air, inert gas
Working pressure range - 0～0.9MPa
Rated supply pressure - 0.5MPa
Operating temperature limit - 0 to 60℃ (no freezing)

Vacuum characteristics
Ultimate vacuum - -53kPa
Suction flow rate - 300L/min(ANR)
consumption flow rate - 300L/min(ANR)

Features
Transports small, irregularly shaped workpieces such as granules, powder, and fibers.
Workpieces can be transported with the intake port and exhaust port in a straight line. Models can be selected depending on the size of the transported workpiece.
