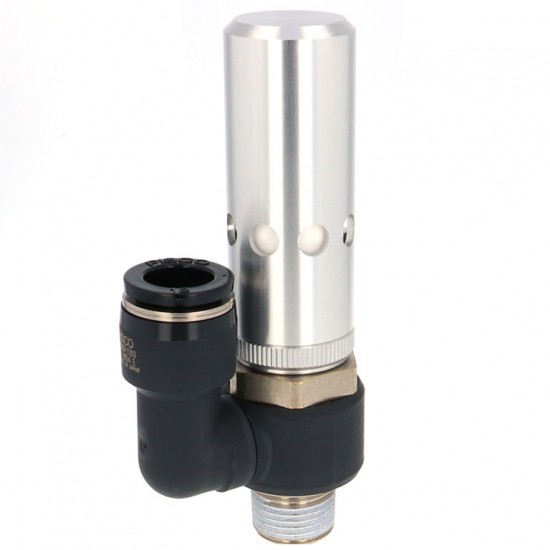

VSH20-1203

Ejector with built-in one-touch fitting for direct mounting of solenoid valve

Applicable size
vacuum port tube size - φ12mm
Air supply port thread size - R3/8

Specification
Fluid used - air
Working pressure range - 0.15～0.7MPa
Rated supply pressure - 0.5MPa
Operating temperature limit - 0 to 60℃ (no freezing)

Vacuum characteristics
Ultimate vacuum - -93kPa
Suction flow rate - 104L/min(ANR)
consumption flow rate - 200L/min(ANR)

Features
Ejector with built-in one-touch fitting for direct mounting of solenoid valve.
Necessary items for transporting workpieces. By converting compressed air into vacuum and combining it with a vacuum pad, it can be used to transport workpieces.
