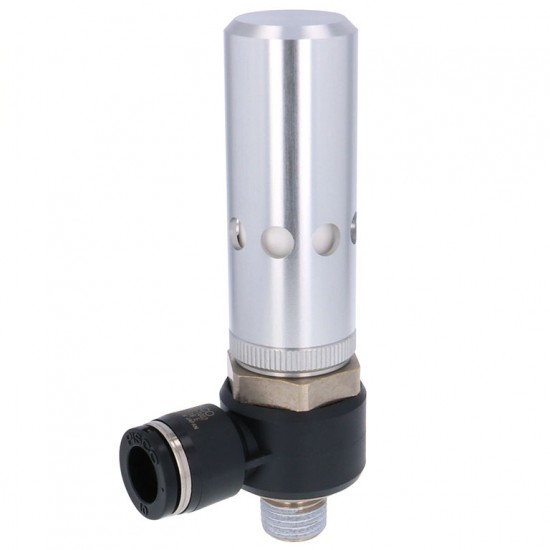

VHH20-1002

Ejector with built-in push-in fitting for valve direct mounting type

Port size:
Vacuum port Tube dia. - φ10mm
Air supply port Thread size - R1/4

Specifications:
Fluid medium - Air
Operating pressure range - 0.15～0.7MPa
Rated supply pressure - 0.5MPa
Operating temp. range - 0～60℃(No freezing)

Vacuum characteristics:
Final vacuum - -93kPa
Suction flow rate - 104L/min(ANR)
Consumption flow rate - 200L/min(ANR)

Advantages:
Ejector with built-in push-in fitting for valve direct mounting type
Essential item to convey workpieces. The Vacuum Generator, creating vacuum by use of compressed air, can be used to convey materials in combination with a Vacuum Pad.
