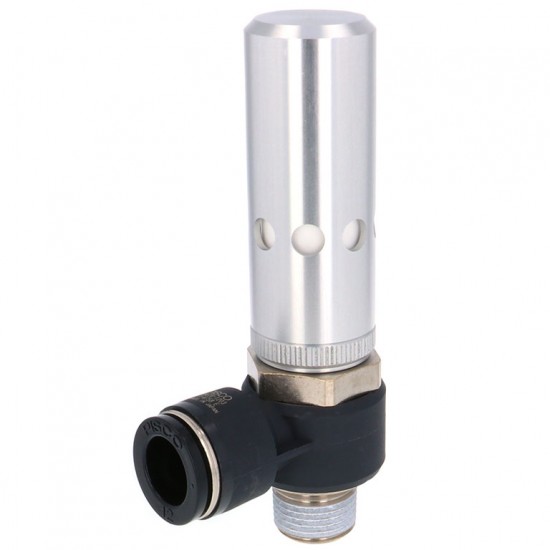

VHE20-1203

Ejector with built-in one-touch fitting for direct mounting of solenoid valve

Port size:
Vacuum port Tube dia. - φ12mm
Air supply port Thread size - R3/8

Specifications:
Fluid medium - Air
Operating pressure range - 0.15～0.7MPa
Rated supply pressure - 0.35MPa
Operating temp. range - 0～60℃(No freezing)

Vacuum characteristics:
Ultimate vacuum - -92kPa
Suction flow rate - 82L/min(ANR)
Consumption flow rate - 150L/min(ANR)

Features:
Ejector with built-in one-touch fitting for direct mounting of solenoid valve
Necessary items for transporting workpieces. By converting compressed air into vacuum and combining it with a vacuum pad, it can be used to transport workpieces.
