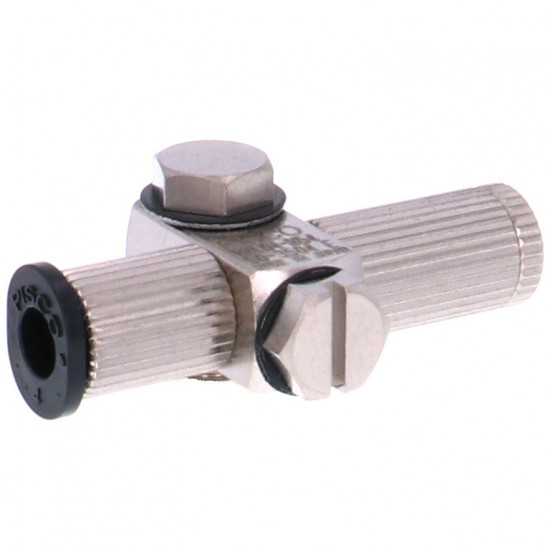

VML04-M54

Ejector that can be attached directly to the pad holder of the vacuum pad.

Applicable size
vacuum port thread size - M5x0.8
Air supply port tube size - φ4mm

Specification
Fluid used - air
Working pressure range - 0.15～0.7MPa
Rated supply pressure - 0.5MPa
Operating temperature limit - 0 to 60℃ (no freezing)

Vacuum characteristics
Ultimate vacuum - -66kPa
Suction flow rate - 7.5L/min(ANR)
consumption flow rate - 8L/min(ANR)

Features
Ejector that can be attached directly to the pad holder of the vacuum pad.
Necessary items for transporting workpieces. By converting compressed air into vacuum and combining it with a vacuum pad, it can be used to transport workpieces.
