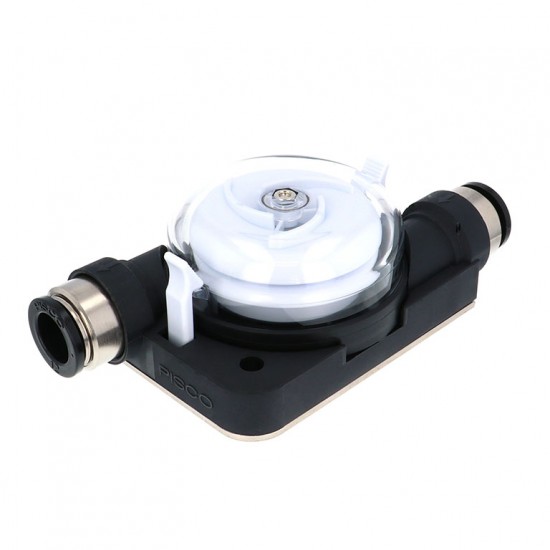

The image is VFB20-12-12. The actual color of resin body and release ring is light-gray.
Using the element and cyclone effect, the vacuum filter removes the dust and water drops sucked in by the Vacuum Generator.
Model type: Large Capacity Union Type for Vacuum Circuit
Weight: 198.0g
Shipping unit: 1pc.
Resin: PBT
Metal: Brass with electroless nickel plating
Seal Rubber: NBR
Port size
Tube size: φ12mm
Specifications
Fluid medium: Air
Operating pressure range: -100～0kPa
Filtering accuracy(*1): 10μm
Operating temp. range: 0～60℃(No freezing)
Filter area: 20cm2
Advantages
Using the element and cyclone effect, the vacuum filter removes the dust and water drops sucked in by the Vacuum Generator.
As the whole dust case can be removed in a snap, dust is not scattered
