SGC-033-ZZ-T

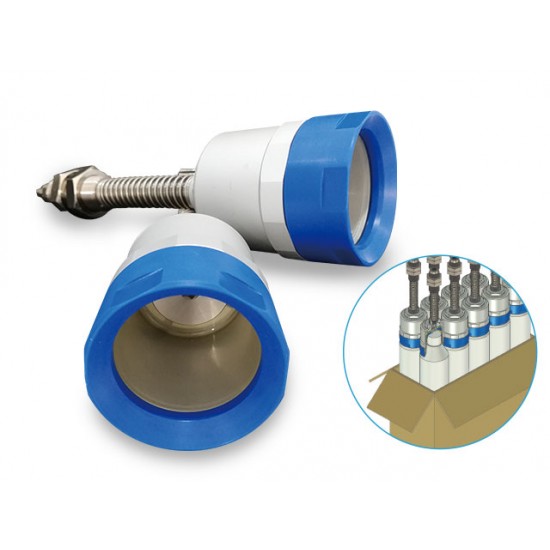

This is a representative image.

Picking pad
Bottle neck gripper for secure transportation for manufacture, packaging, or production process.
Suitable for lifting a wide range of different bottles, glass or plastic.
Can be used as an individual hand or as part of a series of hands mounted in one manifold.
Wider opening and deeper gripper space for secure gripper to accommodate different types of bottles

Specifications
Format: 033
Cup material: Material - TPU; Hardness 80; Color - Light yellow transparent
Operating temperature range (Centigrade): -10~70
Operating pressure range MPa: 0.1~0.35
Compatible workpiece outer diameter: Maximum - 36mm; Minimum - 15mm
Mass with metal fittings g: 497
Mass with no metal fittings g: 218
Buffer specification spring load: Full stroke N - 19.6; 0 stroke N - 8.3
