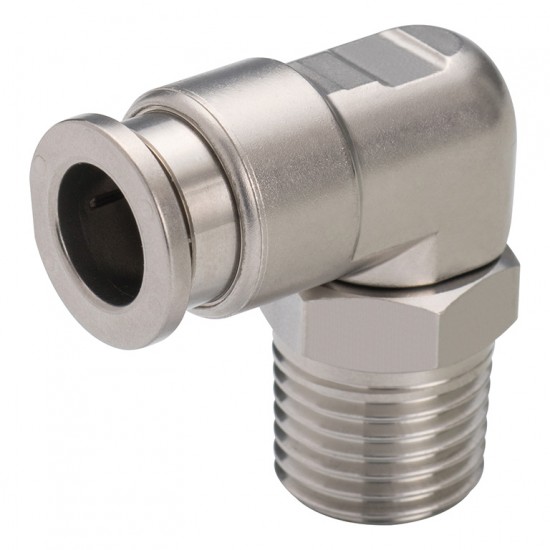

SSPL6-01

The image is a representation of the Series and not that of the specific model.

Realized down-sizing - Straight fitting volume ratio approx 17% down-sized; Elbow fitting volume ratio approx 20% down-sized

Excellent operability - Operability in tube release is widely improved by adopting lock-claws

Metal parts -> SUS316 with excellent anti-corrosivity

Seal rubber -> FKM

Options -> Clean-room packaging / Seal tape / Fluorine grease

Specifications

• Type: Elbow
• Tube size 0.D.: 6mm
• Thread size: Taper pipe thread R1/8
