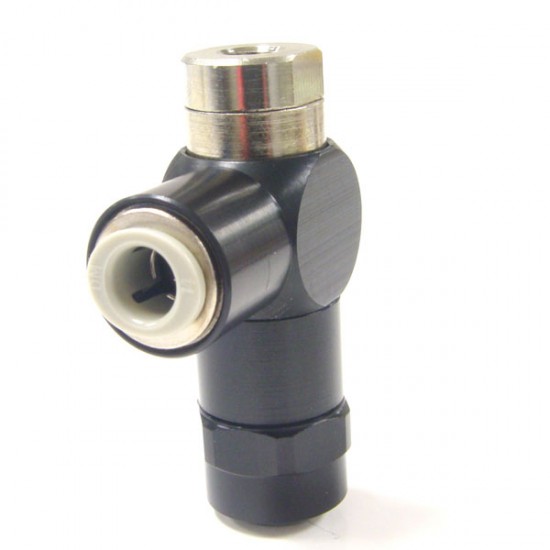

QE11-S-76(discontinued)

Please contact us for recommended replacements.

5/32" Push-in Input Port (Quick Exhaust Valves) Quick Exhaust Valves are used in pneumatic circuits to allow rapid cylinder return without permitting air to travel back through the system. Pneumadyne manufactures a wide variety of configurations to accommodate application requirements and plumbing convenience. These "11" Series valves (part numbers starting with QE11) relieve 100 in3 of pressure in just 2 seconds. Available exhaust ports include: 1/8 NPT (F) for use with sintered bronze or industrial mufflers, 1/4-28 UNF (F) for use with a Speed Control Needle and 1/4 push-in for fast tubing installation. Part number QE10-7MF is a miniature Quick Exhaust Valve that relieves 100 in3 of air in 6 seconds. Features:
Black anodized & electroless nickel plated for corrosion resistance
Right angle configuration
Swivel cylinder port for alignment purposes
Threaded or controllable exhaust port
Male pipe thread for direct cylinder mount
Allows rapid cylinder return

Pneumadyne QE11-S-76
