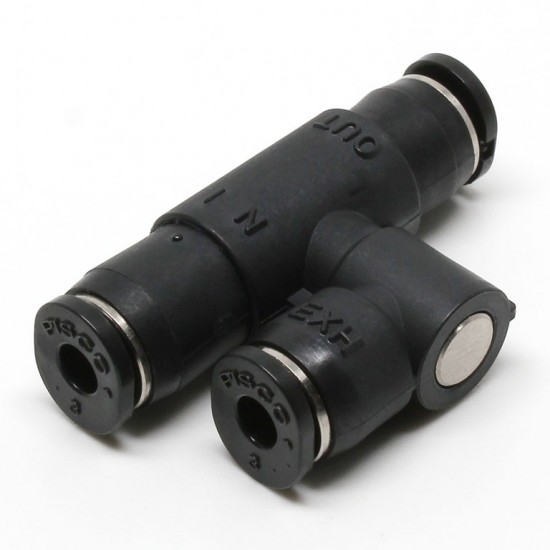

EQY-3

Best suitable for high-speed drive cylinder.

Model type: Union Straight Tube Exhaust
Weight: 5.6g
Shipping unit: 1pc.

Resin: PBT

Port size
Tube dia.: φ3mm

Specifications
Fluid medium: Air
Operating pressure range: 0.1～0.7MPa
Min. cracking pressure: 0.05MPa
Operating temp. range: 5～60℃(No freezing)

Advantages
Best suitable for high-speed drive cylinder.
Possible to control high-speed cylinder.
Tube O.D. 3mm is available for mini type.
Annual 90,000ℓ of air consumption can be reduced by downsizing the tube size ø4mm to ø3mm. (Depending on our conditions).
