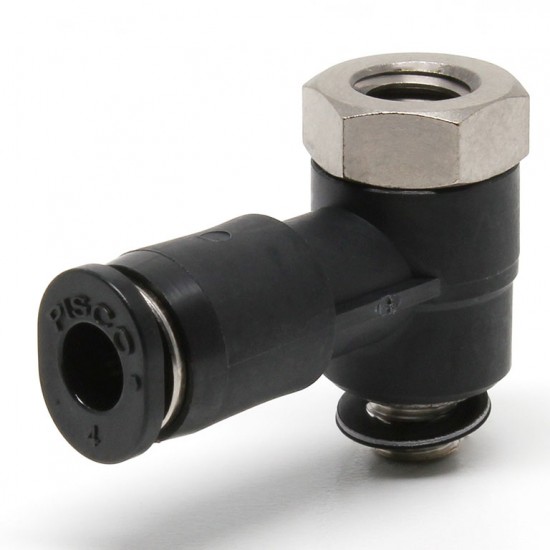

EQH-4M5M6

Best suitable for high-speed drive cylinder.

Model type: Cylinder Direct Attachment with Exhaust Female Thread
Weight: 7.3g
Shipping unit: 1pc.

Resin: PBT
Metal: Brass with electroless nickel plating

Port size
Tube dia.: φ4mm M5x0.8 M6x1

Specifications
Fluid medium: Air
Operating pressure range: 0.1～0.7MPa
Min. cracking pressure: 0.05MPa
Operating temp. range: 5～60℃(No freezing)

Advantages
Best suitable for high-speed drive cylinder.
Possible to control high-speed cylinder.
