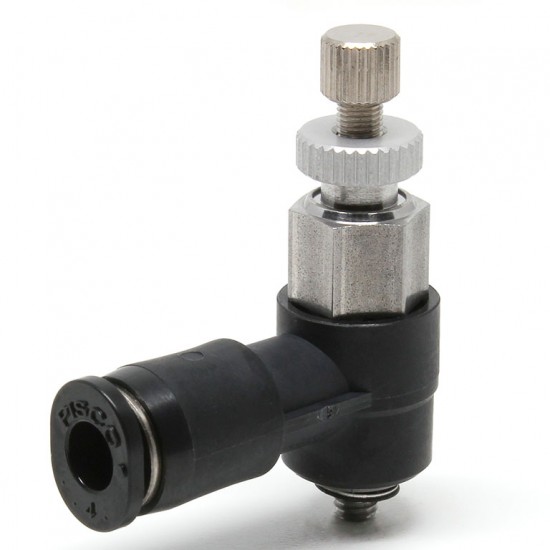

EQH-4M3E

Best suitable for high-speed drive cylinder.

Model type: Cylinder Direct Attachment with Exhaust Thread
Weight: 9.1g
Shipping unit: 1pc.

Resin: PBT
Metal: Brass with electroless nickel plating

Port size
Tube dia.: φ4mm M3x0.5

Specifications
Fluid medium: Air
Operating pressure range: 0.1～0.7MPa
Min. cracking pressure: 0.05MPa
Operating temp. range: 5～60℃(No freezing)

Advantages
Best suitable for high-speed drive cylinder.
Possible to control high-speed cylinder.
Exhaust needle valve type, whose exhaust port incorporates throttling function, is available.
