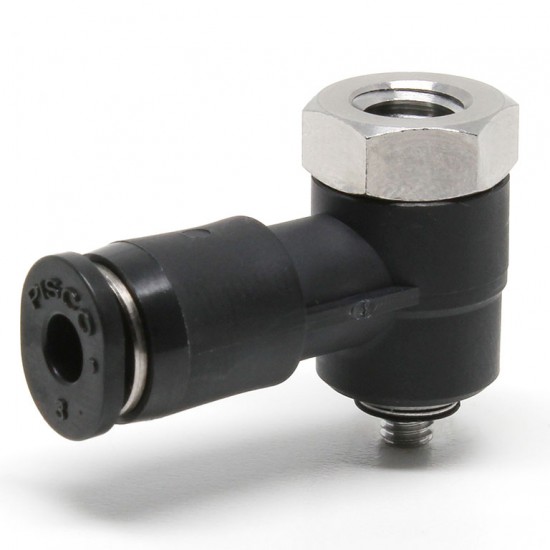

EQH-3M3M6

Best suitable for high-speed drive cylinder.

Model type: Cylinder Direct Attachment with Exhaust Female Thread
Weight: 6.6g
Shipping unit: 1pc.

Resin: PBT
Metal: Special Stainless Steel

Port size
Tube dia.: φ3mm M3x0.5 M6x1

Specifications
Fluid medium: Air
Operating pressure range: 0.1～0.7MPa
Min. cracking pressure: 0.05MPa
Operating temp. range: 5～60℃(No freezing)

Advantages
Best suitable for high-speed drive cylinder.
Possible to control high-speed cylinder.
Tube O.D. 3mm is available for mini type.
Annual 90,000ℓ of air consumption can be reduced by downsizing the tube size ø4mm to ø3mm. (Depending on our conditions).
