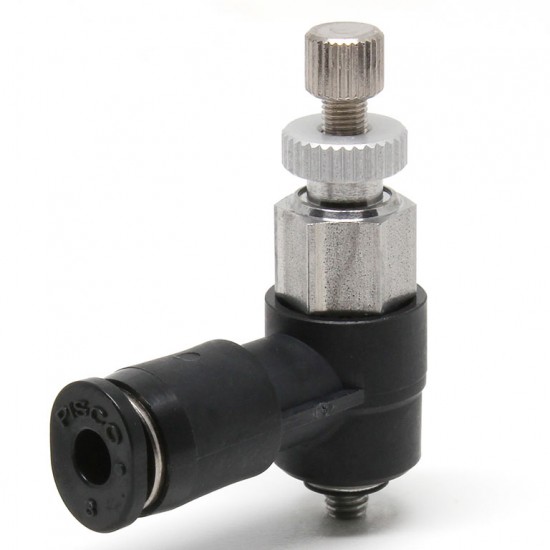

EQH-3M3E

Best suitable for high-speed drive cylinder.

Model type: Cylinder Direct Attachment with Exhaust Thread
Weight: 9.2g
Shipping unit: 1pc.

Resin: PBT
Metal: Special Stainless Steel

Port size
Tube dia.: φ3mm M3x0.5

Specifications
Fluid medium: Air
Operating pressure range: 0.1～0.7MPa
Min. cracking pressure: 0.05MPa
Operating temp. range: 5～60℃(No freezing)

Advantages
Best suitable for high-speed drive cylinder.
Possible to control high-speed cylinder.
Exhaust needle valve type, whose exhaust port incorporates throttling function, is available.
Tube O.D. 3mm is available for mini type.
Annual 90,000ℓ of air consumption can be reduced by downsizing the tube size ø4mm to ø3mm. (Depending on our conditions).
