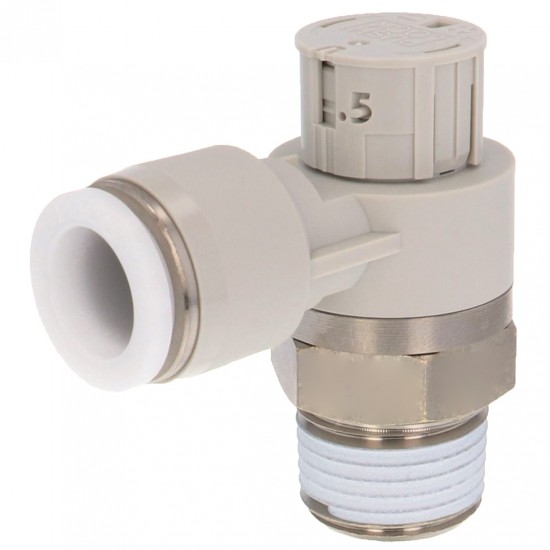

JSGC1/2-04AW

Speed setting can be checked with indicator.
Easy adjustment due to its liner characteristics.

Model type: Elbow
Weight: 85.0g
Shipping unit: 1pc.

Resin: PBT
Metal: Brass with electroless nickel plating
Seal Rubber: NBR HNBR

Port size
Tube dia.: φ1/2
Thread size: R1/2

Specifications
Fluid medium: Air
Operating pressure range: 0.1～1.0MPa
Check valve cracking pressure: 0.05MPa
Operating temp. range: 0～60℃(No freezing)

Advantages
Speed setting can be checked with indicator.
Easy adjustment due to its liner characteristics.
Flow rate can be set with indicator. The scales are on the side(upper/lower) and the top.
Flow rate is proportional to the knob turns.
2 types with different flow range for each size are available. Easier fine adjustment is possible in each flow range, compared to Pisco conventional standard speed controller.
It has a very compact body. The industry's smallest and low profile as a speed controller with an indicator.
Push-Lock type knob. Easy to handle.
Flow rate can be set by 30 steps in one turn. * The number of turn is visible every 1/2 turn.
Easy to identify the flow direction by the knob color.
The material of the diaphragm is HNBR.
