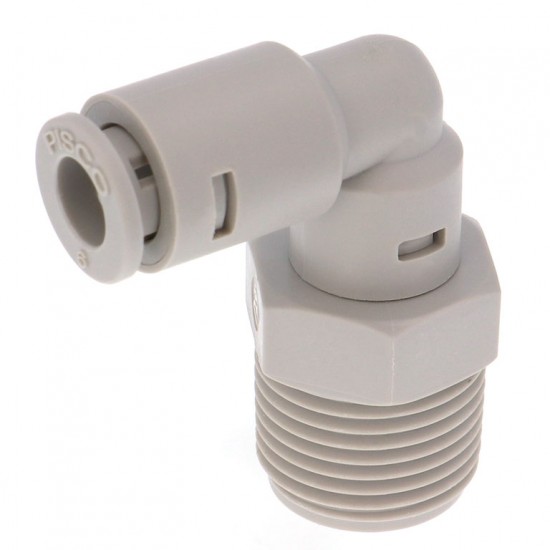

APL6-03

All-resin (PPS) made fitting, which possesses excellent heat resistance, noncombustible (UL94 V-0 equivalent) and chemical resistance and the seal is made of fluoric rubber, to meet a wide variety of applications.

Specifications
Tube dia.: φ6mm
Thread size: R3/8
Fluid medium: Air, Water, Others such as chemicals (Conditional*)
Max. operating pressure: 0.9MPa（at0～20℃）
Max. vacuum: -100kPa
Operating temp. range: 0～80℃（No freezing）
