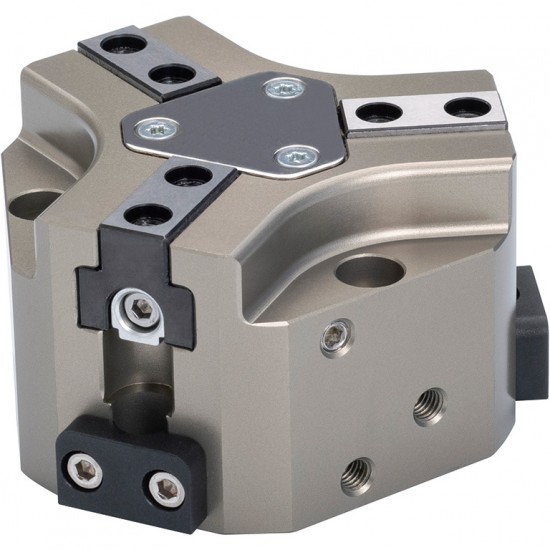

CHT44-D

Best suitable for gripping cylindrical work-pieces.

Model type: Cylinder dia. 44mm type
Weight: 500.0g
Shipping unit: 1pc.

Specifications
Acting type: Double-acting
Cylinder I.D.: 44mm
Finger stroke: 6mm (Diameter 12mm)
Effective gripping force (O.D.) (at 0.6MPa)*: 198N
Effective gripping force (I.D.) (at 0.6MPa)*: 209N
Fluid medium: Air
Operating pressure range: 0.2～0.8MPa
Operating temp. range: 5～80℃ (No freezing)
Lubrication: Not required
Repeat accuracy: ±0.01mm
* Values at gripping length: 40mm.

Advantages
Best suitable for gripping cylindrical work-pieces.
Compact body.
Can be installed in a small space.
High gripping force is realized thanks to the wedge cam mechanism by large round shape piston drive.
High repeat accuracy: ±0.01mm
Sensor switch and EOAT (End of Arm Tooling) mounting flange (non-standard item) are prepared. (sold separately)
Direct piping is available suitable for EOAT (End of Arm Tooling).
No screw connection from the top of the gripper is required for air supply.
