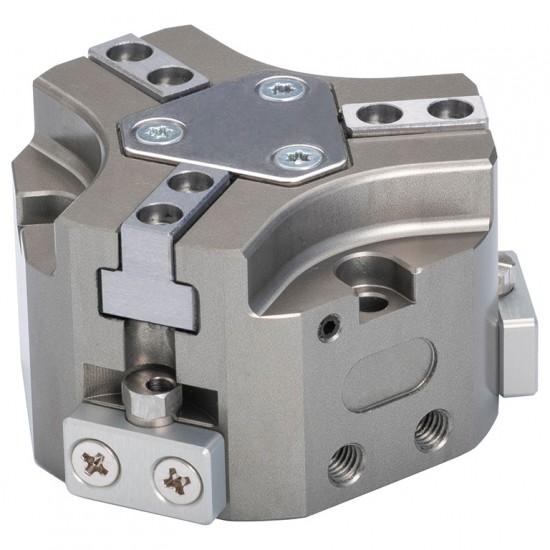

CHT34-D

Best suitable for gripping cylindrical work-pieces.

Model type: Cylinder dia. 34mm type
Weight: 220.0g
Shipping unit: 1pc.

Specifications
Acting type: Double-acting
Cylinder I.D.: 34mm
Finger stroke: 4㎜ (Diameter 8mm)
Effective gripping force (O.D.) (at 0.6MPa)*: 97N
Effective gripping force (I.D.) (at 0.6MPa)*: 114N
Fluid medium: Air
Operating pressure range: 0.2～0.8MPa
Operating temp. range: 5～80℃ (No freezing)
Lubrication: Not required
Repeat accuracy: ±0.01mm
* Values at gripping length: 40mm.

Advantages
Best suitable for gripping cylindrical work-pieces.
Compact body.
Can be installed in a small space.
High gripping force is realized thanks to the wedge cam mechanism by large round shape piston drive.
High repeat accuracy: ±0.01mm
Sensor switch and EOAT (End of Arm Tooling) mounting flange (non-standard item) are prepared. (sold separately)
