- Allows handling of uneven, heavy, porous and other workpieces by one hand.
- Can absorb workpieces by supplying compressed Air with built-in Convum Vacuum Generator.
- A Mesh Filter is installed to avoid getting foreign objects into Convum Vacuum Generator and the Convum Suction Cups.
- Choose from a wide variety of standard Convum Suction Cups.
Specifications :
Suction cup pitch: 54
Suction cup hole number: 14
Suction cup diameter: 40
Suction cup body length: 280
Suction cup type: 3 bellows suction cup
Cup material: Nitrile rubber
Fluid: Oil free compressed air
Operating ambient temp: 0 to -50 degrees centigrade (without frozen)
Operating pressure range: 0.15 to -0.6 Mpa
Number of Nozzles: 1 nozzle
Supplied air pressure: 0.45 Mpa - 0.55 Mpa
Max. vacuum pressure: 70 kPa - 90 kPa
Suction flow rate: 323 L/min (ANR) - 356 L/min (ANR)
Air consumption amount: 104 L/min (ANR) - 126 L/min (ANR)
Exhaust air sound volume (vacuum port open): 71 dB (A)
Exhaust air sound volume (vacuum port closed): 64 dB (A) - 55 dB (A)
- Stock: In Stock
- Manufacturer: Convum

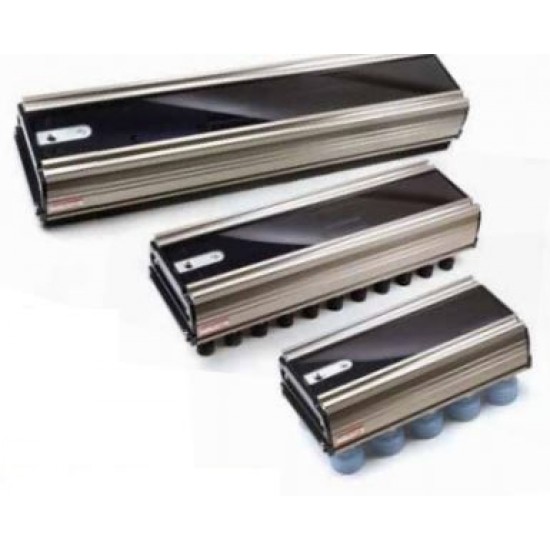

- Model: SGP-L280-C3-PC40N
- SKU: SGP-L280-C3-PC40N
