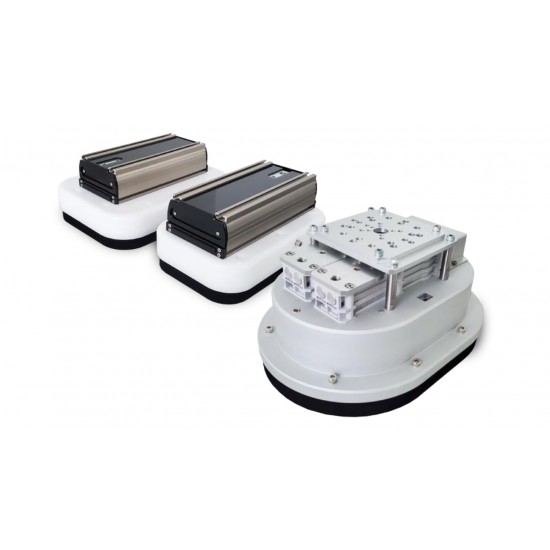

This is a representative image.
Bag suction Palletcher
Attachable to various robots using the upper flange plate
SGP-H is equipped with a vacuum adjustment needle that allows adjustment of vacuum pressure. Ideal for workpieces that are easily deformed or torn, and also compatible with an external vacuum source.
Suction conveys bagged workpieces.
Specifications
Sponge Size: Height 250mm Width 350mm
Sponge Specifications: Material: Chloroprene sponge rubber; Thickness: 30mm; Hardness: ASCER C 8
Operating temperature limit ℃: 0 to 60 However, no freezing
Fluid used: Oil-free compressed air
Pressure range: 0.15 ~ 0.6MPa
Rated pressure MPa: 0.45
Ultimate vacuum pressure kPa: 55
Suction flow rate ※1 L/min(ANR): 557
Air consumption flow rate L/min(ANR): 201
Exhaust volume Vacuum opening dB(A): 87
Exhaust volume Vacuum port closed dB(A): 80
