Applicable size
Vacuum port female thread size - Rc1/2
Air supply port size female thread size - Rc1/2
Specification
Fluid used - air, inert gas
Working pressure range - 0.15～0.7MPa
Rated supply pressure - 0.5MP
Operating temperature limit - 0 to 60℃ (no freezing)
Digital pressure gauge specifications
Model - GPD-V-01
Rated pressure range - -101～0kPa
Pressure display range - -101～10kPa(※1)
Pressure resistance - 300kPa
Applicable fluid - Air, non-corrosive/non-flammable gas
battery - CR2032 lithium battery
battery life - Approximately 3 years (if displayed 5 times a day)
Battery lowest detection function - Yes
Battery replacement - Possible
Display time - 60 seconds after pressing the button
Number of views - 2Hz (2 times/second)
repeatability - ≦±1% FS ± 1 digit
LCD display - 7 segments, 3.5 digit
Display accuracy - ≦±2% FS ± 1 digit or less (at ambient temperature: 25 ±3℃)
protective structure - IP65(※2)
Ambient temperature range - Operating: 0 to 50℃, Storage: -10 to 60℃ (no condensation or freezing)
Ambient humidity range - During operation and storage: 35 to 85%RH (no condensation)
Vibration resistance - Double amplitude 1.5mm or 100m/s 2 , 1 minute 10Hz to 55Hz to 10Hz, 2 hours each in X, Y, Z directions
Shockproof - 100m/s 2
Temperature characteristics - ±2% of detection pressure FS (at 25℃)

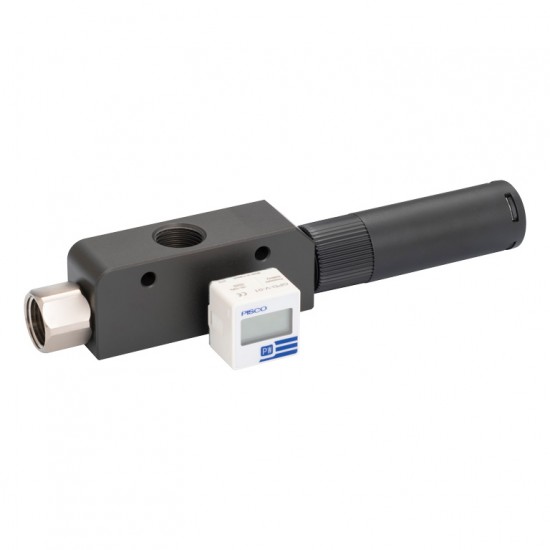

Features
Suction flow rate (nozzle diameter): 3 types available: 100L/min[ANR](φ2.0mm), 150L/min[ANR](φ2.5mm), 200L/min[ANR](φ2.8mm).
Square aluminum body.
Adopts a cylindrical silencer with excellent sound deadening effect.
