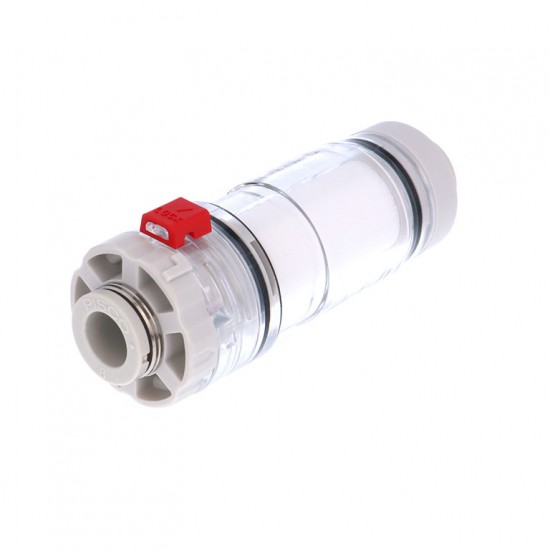

SFU3-1/4-1/4-NH

Best suitable In-line filter for both positive and negative pressure.

Model type: Union Straight without holder
Weight: 27.0g
Shipping unit: 1piece(s)
Resin: PBT
Metal: Brass with electroless nickel plating
Seal rubber: NBR

Port size
Tube size: φ1/4""

Specifications
Fluid medium: Air
Max. operating pressure: 1.0MPa(at 20℃)
Max. vacuum: -100kPa
Pressure resistance: 1.5MPa
Filtering accuracy: 5μm(Trapping efficiency: 95%)
Operating temp. range: 0～50℃(No freezing)
Filter area: 12.7cm²
*1 Based on PISCO measuring condition.
Warning
*2. The max. operating pressure is based on 20ºC. When the product is used beyond the operating temperature range, refer to the below ""Relation of Operating Temp. & Max. Operating Pressure"" before using.

Advantages
Best suitable In-line filter for both positive and negative pressure.
Use as pre-filtering application for positive pressure.
Easy maintenance.
The element is replaced easily without using tools.
