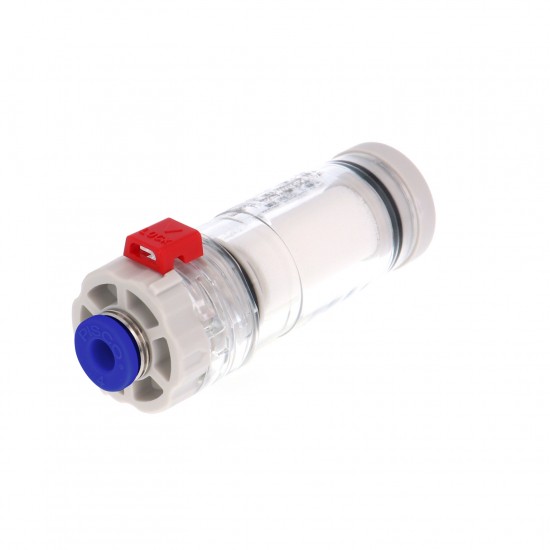

SFU2-44-NH-S3

Best suitable In-line filter for both positive and negative pressure.

Port size
Tube size: φ4mm

Specifications
Fluid medium: Air
Max. operating pressure: 1.0MPa(at 20℃)
Max. vacuum: -100kPa
Pressure resistance: 1.5MPa
Filtering accuracy: 5μm(Trapping efficiency: 95%)
Operating temp. range: 0～50℃(No freezing)
Filter area: 7.5cm²

Advantages
Best suitable In-line filter for both positive and negative pressure.
Use as pre-filtering application for positive pressure.
Easy maintenance.
The element is replaced easily without using tools.
-S3 specification is available as an option, featuring "No copper-based metal material is used in airflow paths"and "Low-level Ozone resistance".
