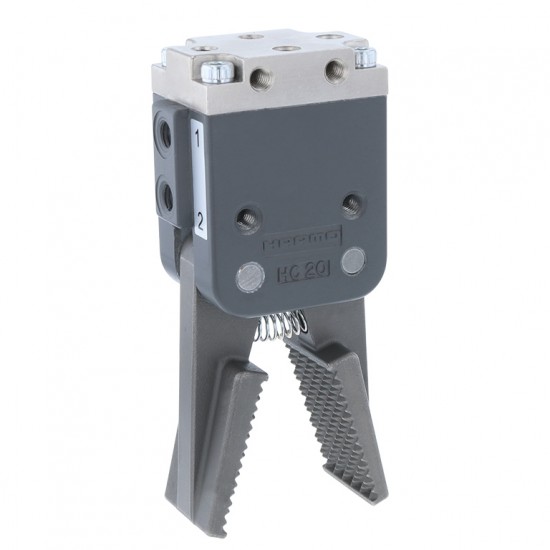

HC20BMX

Compact sized and light-weighted angular/sprue grippers

Port size
Female thread - M5x0.8

Specifications
Action - Double acting / Single acting
Fluid medium - Compressed air （No lubrication）
Operating pressure range - 0.2～0.6MPa
Operating temperature range - -10～ 60℃ (No freezing)
Cylinder sectional area - 4.3cm2
Repeatability - ±0.1mm (at the midpoint of jaw)
Max. operating frequency - 100 C.P.M.

Advantages
Compact sized and light-weighted angular/sprue grippers
The Angular/Sprue Gripper has realized both compact size and large gripping power by applying a compact elliptic cylinder.
Angular Gripper with Sprue Jaws is provided. It is most suitable for sprue picking.
