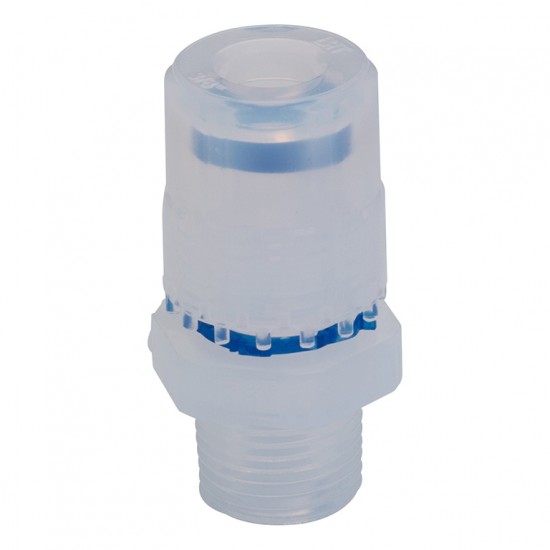

F-MC-H3-N2

Suitable for chemical liquid piping in semiconductor manufacturing process.

Port size:
Tube dia.(O.D. x I.D.): φ3/8"(9.53mm)xφ6.35mm
Thread size: NPT1/4

Specifications:
Fluid medium: Liquid (Conditional*1)
Max. operating pressure: 0.7MPa（at0～60℃）*2
Operating temp. range: 0～150℃（No freezing）
Operating temp. range: 0～200℃（No freezing）*3

Advantages
Suitable for chemical liquid piping in semiconductor manufacturing process.
High pull-out strength and sealability are realized. An impact-ring holds the tube firmly.
Easy control of union nut tightening. A click gauge is incorporated for making an easy check that the union nut is firmly tightened.
Clean washing + Clean packaging.
