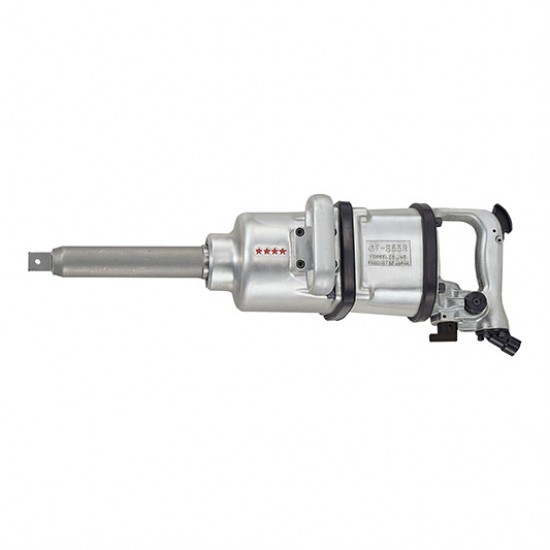

GT-S55R-9

1.0" Drive Air Impact Wrench, 9" Anvil, Light F-Hammer, D-Handle, 1808 lb/ft Torque, 2.0" Max Bolt Capacity, 2800 RPM

The GT-S55R-9 is a heavy-duty industrial 1.0” square drive air impact wrench with a rugged 9.0” extended anvil and is perfect for general automotive or machinery applications.  This tough unit is compact and lightweight, has a torque range of 253.1-1808 lb/ft (max torque 2214.0 lb/ft), a max bolt capacity of 2.0”, and outfitted with a powerful F-hammer mechanism for stable high-torque fastening.  Other specifications include:  2800 RPM, anvil pin-lock, 4-adjust dial, 87psi air pressure, 1/2” air hose inner diameter, D-handle type, 24.0” overall length, and weighs 37.5 lbs.

PRODUCT SPECIFICATIONS
Brand: VESSEL
Part Number GT-S55R-9
Drive Size: 1.0" (25.4mm)
Anvil / Retainer Type 9.0" Extended Anvil Thru-Hole with Pin-Lock
Impact Type: F-Hammer
Handle Type: D-Handle
Bolt Capacity Dia.: 2.0" (52mm)
Torque Range: 253.1~1808.0 lb/ft (343~2450 Nm)
Maximum Torque: 2214.0 lb/ft (3000.0 Nm)
Torque Adjustment: 4-Stage Adjust Dial
No Load Speed: 2800 RPM
Required Air Pressure 87psi (0.6 Mpa)
Air Consumption: 42.4 CFM (1.20 m3/min)
Hose Coupling: Rc 1/2
Air Hose Inner: Dia. 1/2" (12.7mm)
Exhaust: Front
Overall Length: 24.0" (610.0mm)
Weight: 37.5 lbs (17.0kg)
Country of Origin Japan
