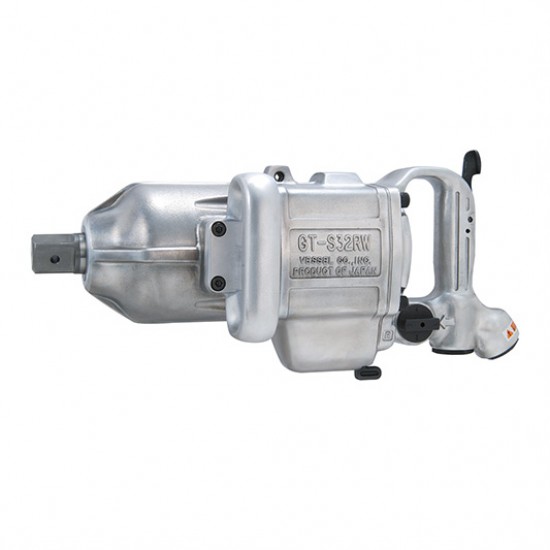

GT-S32RW

1.0" Drive Air Impact Wrench, Double Hammer, D-Handle, 1158 lb/ft Torque, 1-15/16" Max Bolt Capacity, 3600 RPM

The GT-S32RW is a super-duty industrial rated 1.0” air impact wrench designed for heavy-duty applications such as mould fastening of concrete piles, earth moving equipment, bridges, and construction sites. It’s equipped with a powerful double-hammer impact mechanism for stable high-power wrenching at tough job sites. This item is not to be used for automotive tire change.

This rugged unit has a torque range of 253.1~1158 lb/ft (max torque 1329.3 lb/ft), a max bolt capacity of 1-15/16”, and is engineered with selected high impact steel for durability. Other specifications include: 3600 RPM, anvil pin-lock, 4-adjust dial, 87psi air pressure, 1/2" air hose inner diameter, D-handle, 15.0” overall length, and weighs 26.9 lbs

PRODUCT SPECIFICATIONS
Brand: VESSEL
Part Number GT-S32RW
Drive Size: 1.0" (25.4mm)
Anvil / Retainer Type Thru-Hole with Pin-Lock
Impact Type: Double Hammer
Handle Type: D-Handle
Bolt Capacity: Dia. 1-1/4" (33mm)
Torque Range: 253.1~1158.0 lb/ft(343~1569 Nm)
Maximum Torque: 1329.29 lb/ft (1801.2 Nm)
Torque Adjustment: 4-Stage Adjust Dial
No Load Speed: 3600 RPM
Required Air Pressure 87psi (0.6 Mpa)
Air Consumption: 35.3 CFM (1.00 m3/min)
Hose Coupling: Rc 1/2
Air Hose Inner Dia.: 1/2" (12.7mm)
Exhaust: Front
Overall Length: 15.0" (380.0mm)
Weight: 26.9 lbs (12.2kg)
Country of Origin Japan
