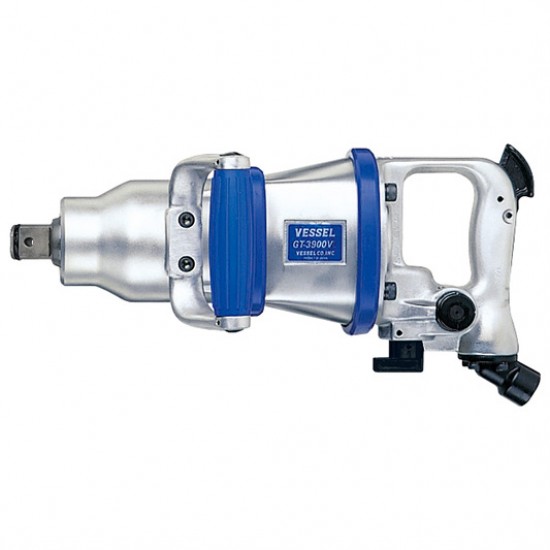

1.0" Drive Air Impact Wrench, Light V-Hammer, D-Handle, 1266.4 lb/ft Torque, 1-1/2" Max Bolt Capacity, 4200 RPM
The GT-3900V is a heavy-duty industrial 1.0” square drive air impact wrench. This D-handle type unit is ideal for general automotive or machinery applications. It’s compact and lightweight, has a torque range of 361.6-1266.4 lb/ft (max torque 1546.0 lb/ft), a max bolt capacity of 1-1/2”, and equipped with a powerful V-hammer mechanism for quick high-torque fastening. Other specifications include: 4200 RPM, anvil retainer ring, 4-adjust dial, 87psi air pressure, 1/2” air hose inner diameter, D-handle type, 14.1” overall length, and weighs 18.1 lbs.
PRODUCT SPECIFICATIONS
Brand: VESSEL
Part Number GT-3900V
Drive Size: 1.0" (25.4mm)
Anvil / Retainer Type Thru-Hole with Retainer Ring
Impact Type: V-Hammer
Handle Type: D-Handle
Bolt Capacity Dia.: 1-1/2" (39mm)
Torque Range: 361.6~1266.4 lb/ft (490~1716 Nm)
Maximum Torque: 1546.04 lb/ft (2094.9 Nm)
Torque Adjustment: 4-Stage Adjust Dial
No Load Speed: 4200 RPM
Required Air Pressure 87psi (0.6 Mpa)
Air Consumption: 24.7 CFM (0.70 m3/min)
Hose Coupling: Rc 1/2
Air Hose Inner Dia.: 1/2" (12.7mm)
Exhaust: Front
Overall Length: 14.1" (358.6mm)
Weight: 18.1 lbs (8.2kg)
Country of Origin Japan
- Stock: In Stock
- Manufacturer: Vessel
- Model: GT-3900V
- SKU: GT-3900V
