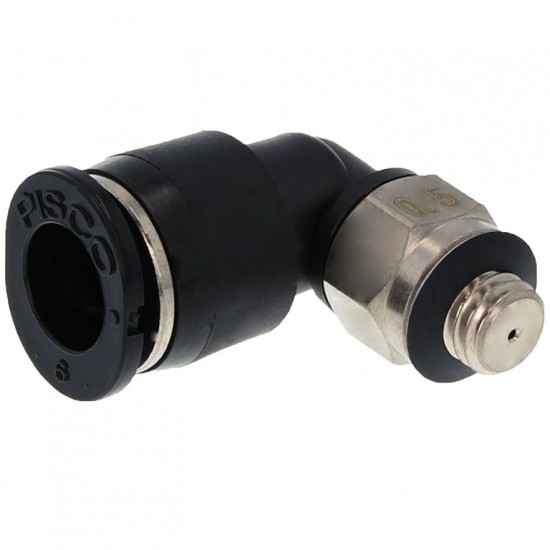

PL6-M5M-0.1

Push-in fitting type fixed orifice joint. It controls air flow.

Model type: Elbow Mini
Weight: 4.1g
Shipping unit: 10pcs

Resin: PBT
Metal: Brass with electroless nickel plating
Seal Rubber: NBR

Port size
Tube dia.: φ6m
Thread size: M5x0.8

Orifice bore
Orifice boreφN(mm): 0.1 +0.05,0
Effective area(mm2): 0.006

Advantages
Push-in fitting type fixed orifice joint. It controls air flow.
Orifice bore:Selectable from φ0.1mm to φ2.0mm in increment of 0.1mm.
Can be installed in tight space.
M5x0.8 thread is introduced in mini type fitting that makes compact piping possible.
Low cost compared to needle valve
