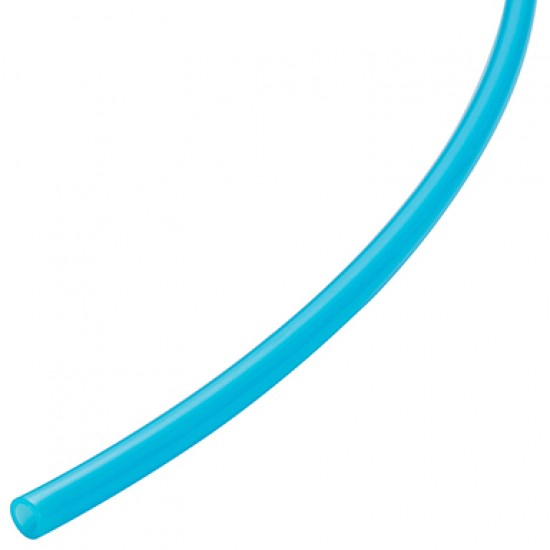

Soft Nylon tube that can flow not only air but also water and thermal media oil.
Excellent pressure resistance and can be used under high pressure.
Available in 12 colors and 6 sizes.
Tube color: Blue
Weight: 5200.0g
Shipping unit: 1roll
Port size
O.D. x I.D.(φmm): 12x9
Specifications
Fluid medium: Air, Water (Conditional *1), Thermal oil (Conditional *1)
Max. operating pressure (65%RH at 20ºC): 1.3MPa *2
Max vacuum: -100kPa
Operating temperature range: Air: -20～100ºC (No freezing)/ Water: -15～90ºC (No freezing)
Durometer (Reference only): shore D 58
Advantages
Withstand high pressure and temperature
Nylon tubing can also be used with hot water and thermal oil
Suitable for piping of molding die cooling system.
Exceptional abrasion, impact, bending fatigue withstands long working hours stably
Cutting marks are printed at approximately 500mm intervals
It is useful to cut tubing. The mark is just as a guide and the accuracy is not guaranteed.
