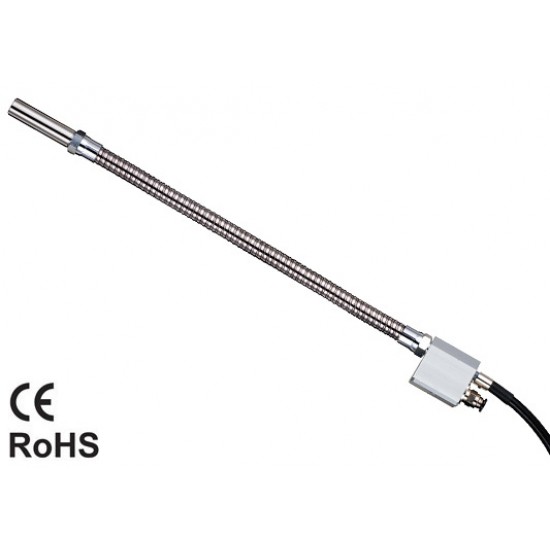

HPF-1

High Power Ionizing Flexible Nozzle

12" (300mm) Flexible Tube To Direct Nozzle For Effective Static Neutralization
Pin-Point Static Electricity Removal Even In Difficult To Reach Locations
Powerful Removal of Dust and Static Electricity
Low-Wear Tital Electrode Needle Enhances Ionizing Performance
High-Voltage Shielded Cable Reduces Interference From Electrical Noise
Titanium Electrode Needle (Discharge Electrode)
Silicon Shielded Cable for High Voltage
Ion Balance Circuit
(High Voltage Power Supply Unit GP-1 4kV)
Safety Circuit / Anomaly Detection Circuit
(High Voltage Power Supply Unit GP-1 4kV)

Specifications:
Model Number (EDP #): HPF-1 (623048)
Ionizing Method / Applied Voltage: AC corona discharge / 3.5kV and 50/60Hz (adjusted on GP-1 4kV)
Power Supply: DC 24V  ±10%
Ion Balance: Adjustable on GP-1 4kV (charged plate monitor or equivalent is required)
Decay Time: Within 1 sec approx. (43.5psi/0.3MPa at 6"/150mm) [measured values]
Air Pressure / Operating Fluid: 14.5psi to 101.7psi MAX (0.1-0.7MPa), Clean Dry Air; More than MAX pressure may cause serious risk of damage to body and parts
Operating Range: 1.97" to 11.81" (50mm to 300mm) between charged item and discharge tip of gun
Estimated Weight: 1.52 lbs (0.69kgs / 690g) including 3m cable and high-pressure connector
Termination Connector: CON-4 high-pressure connector
Air Supply Hose Diameter: Ø6mm Tube Fitting, One-touch joint
Air Consumption: 5.3 ft/m3 (150L/min @ 0.3MPa) approx
Noise Level: 95dBA (43.5psi / 0.3MPa)
Working Temp Range: 41-113°F (5 - 45°C)
Working Humidity Range: 10~80% RH (non-condensing, non-freezing)
Operating / Warning Indicators: GP-1 4kV high-voltage power supply provides high-voltage anomaly detection function and automatic stop circuit
Materials: Nozzle Tip: SUS304; Electrode Needle: Titanium; Insulation: Fluoresin; Flexible Tube: Chrome plated steel; Air Branch Unit: Aluminum
High-Voltage Cable: 9.8ft (3m) silicon shielded cable
Markings: CE, RoHS
Country of Origin: Japan
