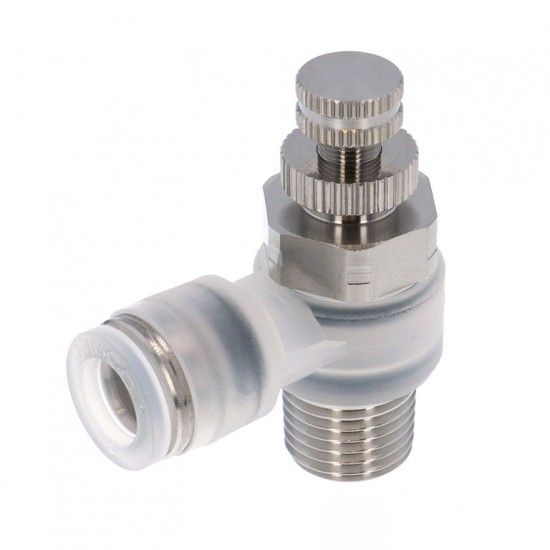

The image is PJNC8-02. The actual product is applied Sealock on thread.
PP (Polypropylene) is applied for the body material to adapt to clean environment.
Model type: Elbow
Weight: 41.0g
Shipping unit: 1pc.
Resin: PP
Metal: SUS304
Seal Rubber: EPDM
Port size
Tube dia.: φ8m
Thread size: R1/4
Specifications
Fluid medium: Air, Water, Others such as chemicals(Conditional*1)
Max. operating pressure: 1.0MPa(at0～20℃)*2
Max. vacuum: -100kPa
Operating temp. range: 0～60℃(No freezing)
Advantages
PP (Polypropylene) is applied for the body material to adapt to clean environment.
Easy to check sanitary condition.
Clear (semitransparent) color used for the resin body makes it possible to check visually the fluid (liquid) inside.
All parts are oil-free specification, which responds to a wide variety of request in various industries.
Metal parts are made of SUS304 and EPDM is used for seal material.
Two types of package are available.
Standard package and Clean-room package that items are washed by clean air, then packed in ISO class 6 equivalent cleanroom are available.
The screw specification can be chosen from Sealock treatment and no-Sealock treatment depending on applications.
Depending on customer's request, Sealock treat or Seal tape specification is available.
