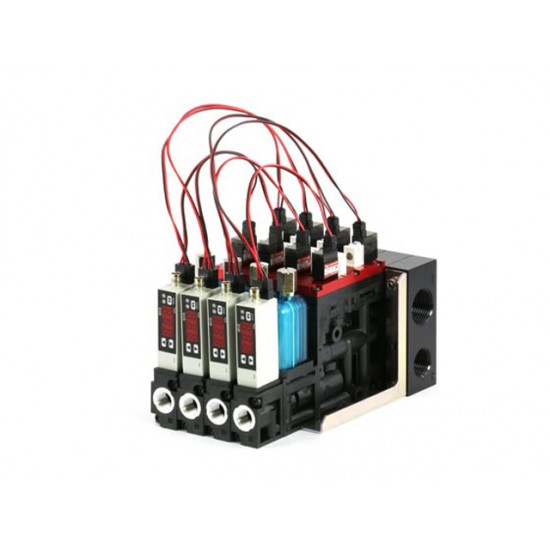

MC72M20HRZSC4BLR4

Vacuum ejector unit

Flexible combinations are selectable

Customizable - With  or without sensor ; With or without Digital display ; With or without check valve

Holding workpiece at an emergency stop - By mounting self-holding valve it is possible to keep the vacuum. It prevents the workpiece from falling.

High vacuum flow type - Applications: Best choice for suction of the workpieces with porous surface and heavy workpieces

Can be mounted on manifold, up to 5 units - Manifold makes it possible to supply air intensively; Different specifications of MC72 can be put together for various purposes

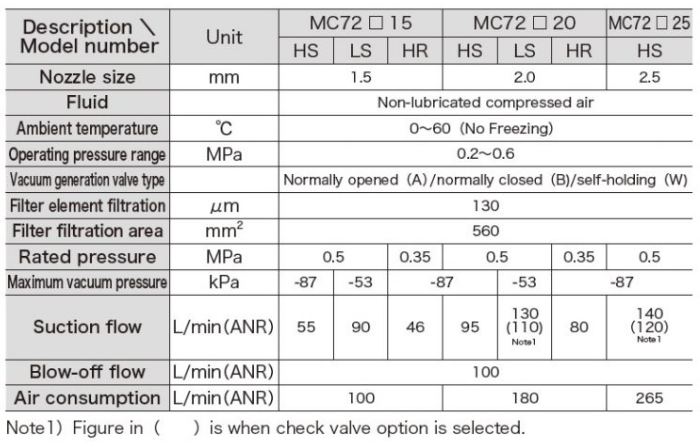

Specifications
