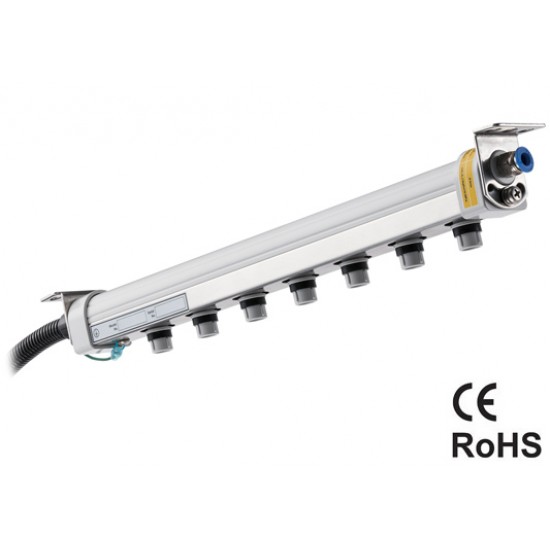

SJ-20

Slim and Compact High Voltage Ion Bars

Ideal For Highly Charged or Fast Moving Products

Features include:
Wide variety of sizes available
Lengths ranging from 6.69" to 69.69" (170mm to 1770mm)
Perfect for bag making, film packing, molding, robotic conveyors, and fool container applications
Compact and slim design
Discharge needles can be cleaned and replaced while bar remains installed
While power is OFF, needles can be cleaned and replaced by simply removing the old needle electrodes
Detachable high-voltage cable
GP-EC silicone shielded cable routes between ion bar and power supply
Brackets to adjust mounting angle
High-voltage power supply and Branch Box enables the use of multiple bars
GP-1 high-voltage power supply can be connected to a maximum of 2 ionizing bars
SH-SP2 Branch Box can be connected to a maximum of 3 ionizing bars

Specifications:
Applied Voltage: 4kVAC
Ionizing Method: AC high-voltage applied
Power Supply: High-voltage power supply GP-1 4kV (optional)
Ion Balance: Within ±50V measured at  39.37" / 43.5psi (1000mm / 0.3MPa)
Decay Time: 1 second or less, measured at 1.97" (50mm) from discharge needle
Operating Range: 1.97"~78.74" (50~2000mm)
Ozone Generation: 0.05ppm or less, measured at 1.97" (50mm) from discharge needle
Air Connection: PT1/8 one-touch joint
Air Supply Hose: SJ-80 or Smaller: O.D. 6mm x I.D. 4mm; SJ-120 or Larger: O.D. 8mm x I.D. 6mm
Air Supply: Clean, dry air or nitrogen (N2) at 43.5psi (0.3 MPa) or less
Operating Environment: 41~122°F (5~50°C) 35~85%RH (no condensation, no freezing)
Ozone Generation: 0.005ppm or less (measured at 2" / 50mm from device ar 0.3MPa)
Material: Discharge Needle: Tungsten (W,99.99%); Main Body: Flame Retardant ABS resin (VO)+SUS304; Fixture: SUS304
