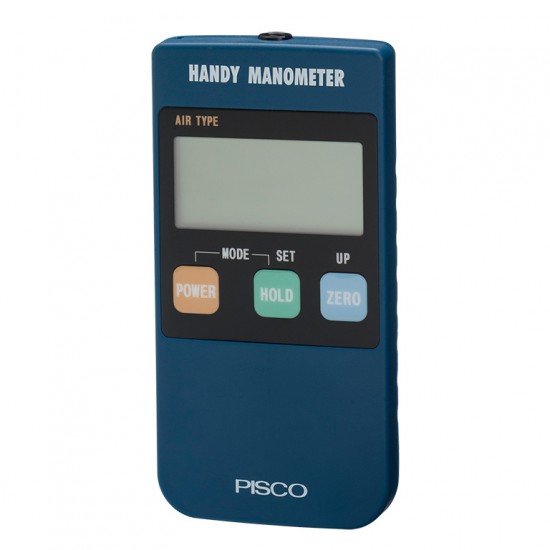

GPH-S

Thin, light weight and highly functional handy pressure gauge

Model type: Gauge pressure indication type
Weight: 0.0g
Shipping unit: 1pc.

Port size
Female thread size: M5x0.8

Specifications
General spec.
Indication system: 3 & 1/2 digits LCD
Sensor resolution: 1 digit
Function: Zero point adjustment (*1), Indication retention, offset (*1), Auto-power-off
Operating temp.: 0～50℃ (No freezing)
Operating humidity: 15～85％ RH or below (No condensing)
Driving power: 3VDC, 2 x AAA dry cell (*2)
Pressure port: M5x0.8 female thread
Protection structure: IP40 (IEC standard) (*3)
Battery life: About 1,000 hours
*1. GPH-B does not have the function of Zero point and Offset adjustment.
*2. The Manometer does not come with batteries. Use commercially available dry-cell batteries (alkaline or manganese cells).
*3. When with Analog output function, out of the standard spec.

Compound gauge pressure type specifications
Rated pressure range: -100～1,000kPa
Max. pressure: 1,500kPa
Indicator accuracy (25℃): ±0.5％ F.S. ±2 digits
Indication accuracy(25±25℃): ±1% F.S. ±2 digits or less
Admitted media: Air, non-corrosive gas
Analog output power supply: 5 ±0.5VDC, 5mA or less, External power supply (Built-in fuel cell is not possible.)
Analog output voltage: -0.100～1.000V
Analog output accuracy: ±10mV (Within indication standard)
Standard attachments: Instruction manual, inspection report

Advantages
Thin, light weight and highly functional handy pressure gauge
Usability and convenience are pursued by palm top design.
Clear large display
3 & 1/2 digits LCD display
Analog output function is equipped, too.
Low power consumption design
Using commercially available dry-cell batteries (AAA battery x 2 pcs.), last about 1000 hours.
(The Manometer does not come with batteries.)
