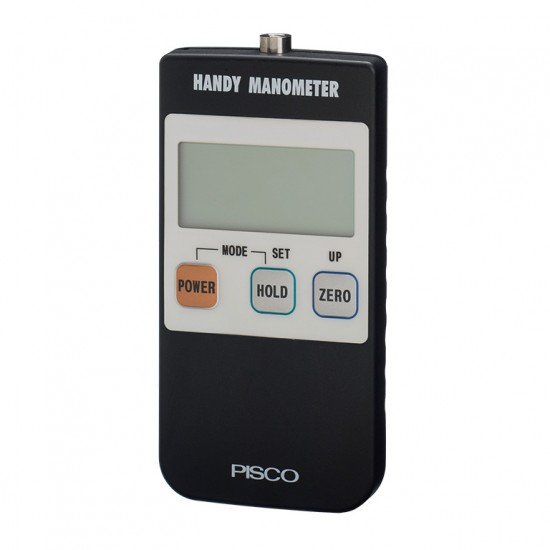

GPH-B

Thin, light weight and highly functional handy pressure gauge

Model type: Absolute pressure indication type
Weight: 0.0g
Shipping unit: 1pc.

Port size
Female thread size: M5x0.8

Specifications
Indication system: 3 & 1/2 digits LCD
Sensor resolution: 1 digit
Function: Zero point adjustment (*1), Indication retention, offset (*1), Auto-power-off
Operating temp.: 0～50℃ (No freezing)
Operating humidity: 15～85％ RH or below (No condensing)
Driving power: 3VDC, 2 x AAA dry cell (*2)
Pressure port: M5x0.8 female thread
Protection structure: IP40 (IEC standard) (*3)
Battery life: About 1,000 hours
*1. GPH-B does not have the function of Zero point and Offset adjustment.
*2. The Manometer does not come with batteries. Use commercially available dry-cell batteries (alkaline or manganese cells).
*3. When with Analog output function, out of the standard spec.

Absolute pressure type
Rated pressure range: 0～100kPa abs
Max. pressure: 200kPa abs
Indicator accuracy (25℃): ± 0.5％ F.S. ±2 digits
Indication accuracy (25 ±25℃): ± 2％ F.S. ±2 digits or less
Admitted media: Air, non-corrosive gas and fluids (SUS316 should not be corroded.)
Analog output power supply: 5 ± 0.5VDC, 5mA or less, External power supply (Built-in fuel cell is not possible.)
Analog output voltage: 0.000～1.000V
Analog output accuracy: ±10mV (Within indication standard)
Standard attachments: Instruction manual, inspection report, Protective cover
* Liquid cannot be used when ø4 or ø6 straight push-in fitting (Code: 4 or 6) is selected in port type and size. Please select a fitting with M5 male thread which can be used with your fluid from our fitting series.

Advantages
Thin, light weight and highly functional handy pressure gauge
Usability and convenience are pursued by palm top design.
Clear large display
3 & 1/2 digits LCD display
Analog output function is equipped, too.
Low power consumption design
Using commercially available dry-cell batteries (AAA battery x 2 pcs.), last about 1000 hours.
(The Manometer does not come with batteries.)
