Powerful

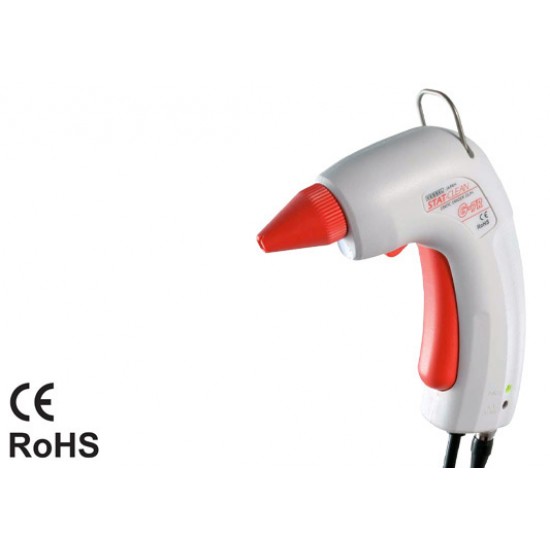

Nozzle Type Ionizing Air Gun with LED Light-beam and Ergonomic Handle
Outstanding Performance: +/-10V Ion Balance
Bright LED Light-beam for Dust Detection
Built-in Operating Status LED Indicators
High Voltage Warning Alarm
Compact and Ultra Lightweight
Optional Nozzles for Various Applications
Safe Design: 24VDC Low Voltage Circuit
Very Easy Maintenance
VESSEL’s innovative ion gun is the first of its kind in the Industry to have
a built-in LED light for visual confirmation of dust detection. Also, this
durable and reliable unit has a very accurate ion balance of ±10V, a powerful
airflow for effective cleaning (up to 87psi) , and a quick decay time less
than 0.5 seconds (at a distance of 6” using 43.5psi). Overall, it’s to be
used to blow off dirt or dust that adheres to part surfaces caused by static
electricity or to be used as a preventative measure against dust
accumulation.
This easy to use ion gun is outfitted with a compact and lightweight body
(only 0.44 lbs) and its ergonomically designed grip is easy to hold and is
adjusted to the optimum angle which helps alleviate any burden on the
operator’s wrist while pointing to the targeted work area for dust
removal.
For enhanced safety, it operates on a 24VDC low voltage circuit and the
piezoelectric high frequency AC corona discharge transformer is located
inside the handle. Since a high-voltage external power supply cable is not
needed, there’s no need to worry about current leaks or electric shock caused
by wire breakage. This compact setup saves valuable workspace and allows
operators to move locations easily.
Moreover, both sides of the handle grip has an operating LED (green) and a
high-voltage malfunction LED (red), which allows the operator to check on the
gun’s operating status at any time.
Also, it has very easy maintenance due to the user-friendly design so
the electrode needles (G-7H) can be changed out quickly by using the optional
(G-7DR) electrode needle removal tool.
If needed, the G7R-E can be integrated with a robot by purchasing the
optional robotic cable transformer (AD24-ITC-E) and is capable of achieving
up to 150,000 cycles and other optional attachments are available for better
work efficiency (brushes, nozzle types, shower tube, etc.).
Specifications:
Input Voltage: DC 24V ±5%
Power Consumption: 74mA (typ.) with LED Illuminated
Ion Balance: Within ±10V (43.5psi at 6") [measured values]
Air Pressure: 14.5~87psi
Dimensions: 4.13" x 5.91" x 1.42"
Weight: 0.44 lb
Working Temp. Range: 41~104°F / 35~65% RH (no dewing)
Working Humidity Range: 32~140°F / 35~85% RH (no dewing)
Decay Time: ±1000V~±100V, within 0.7sec, 43.5psi/6" [measured
values]
Indicators: Power: Green LED; HV Alarm: Red LED
Light: LED
Warning Output: High Voltage Alarm (Red LED)
Ion Balance: Within ±10V (43.5psi/6") [measured values]
Materials: Housing, Trigger, Light Switch: ABS Resin (heat-resistant); Nozzle, Support Material: ABS (with Glass
Fiber); Needle Pole Electrode: Tungsten
Transformer: Rated Input Voltage: 100~240V AC (50~60Hz) 0.4V
Robotic Cable: Rated Output Voltage: 24V DC 1.75A
AC Adapter: DC Input Cable: 8'
AD24-ITC: AC Output Cable: 6'
- Stock: In Stock
- Manufacturer: Vessel
- Model: G7R-E(115V)
- SKU: G7R-E(115V)
